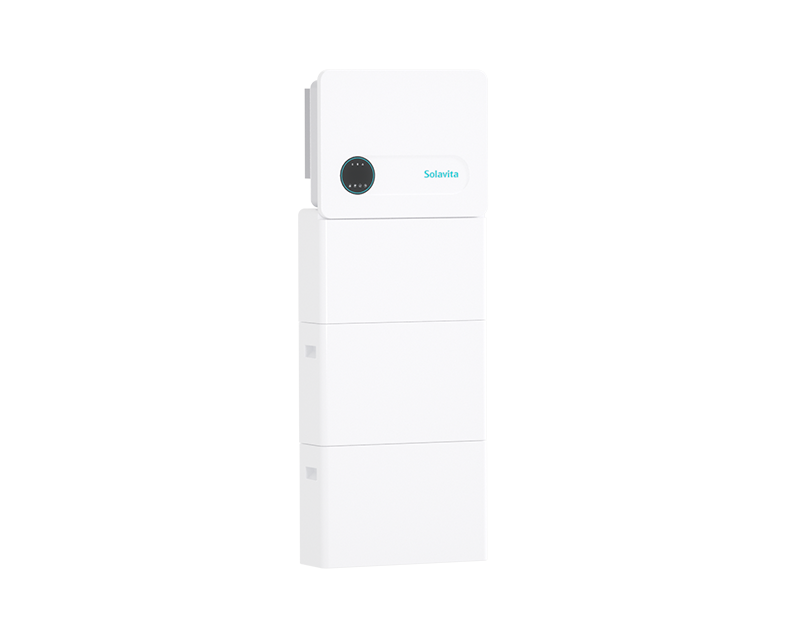

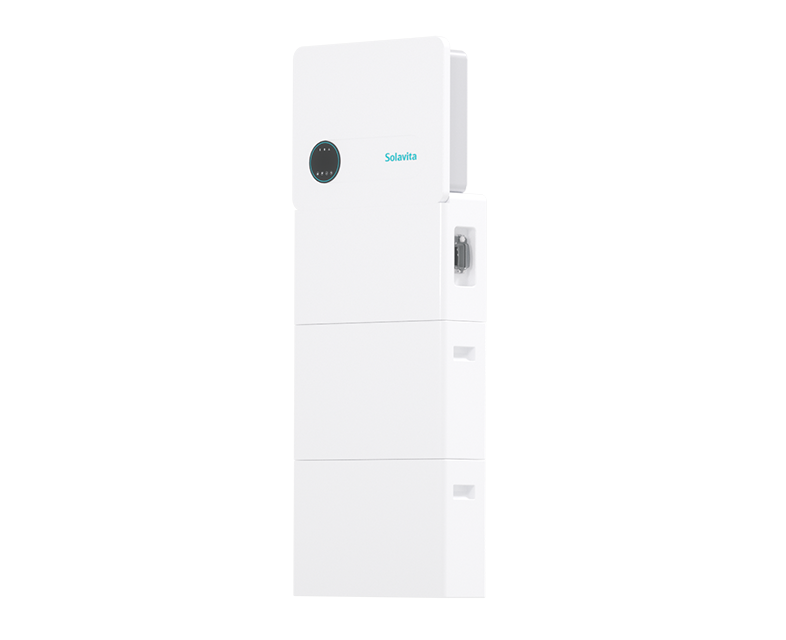

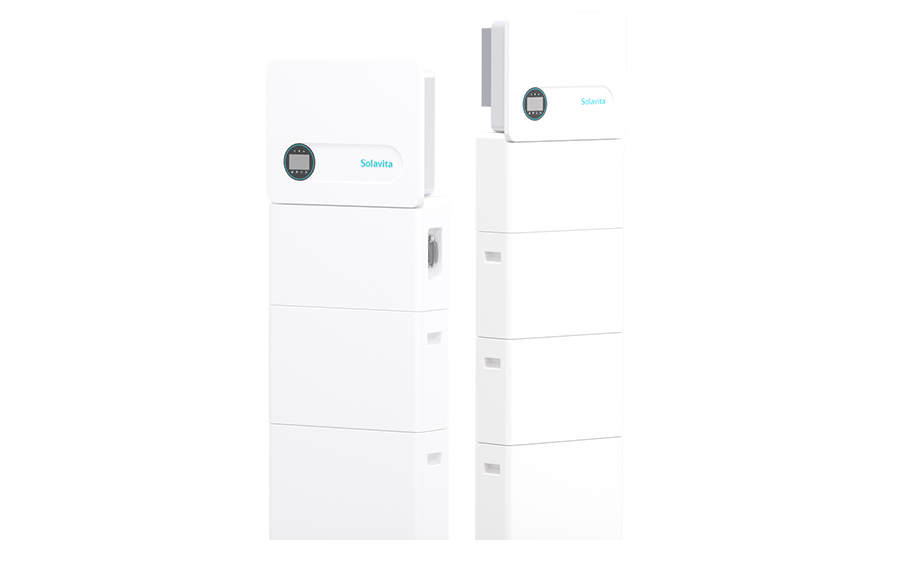

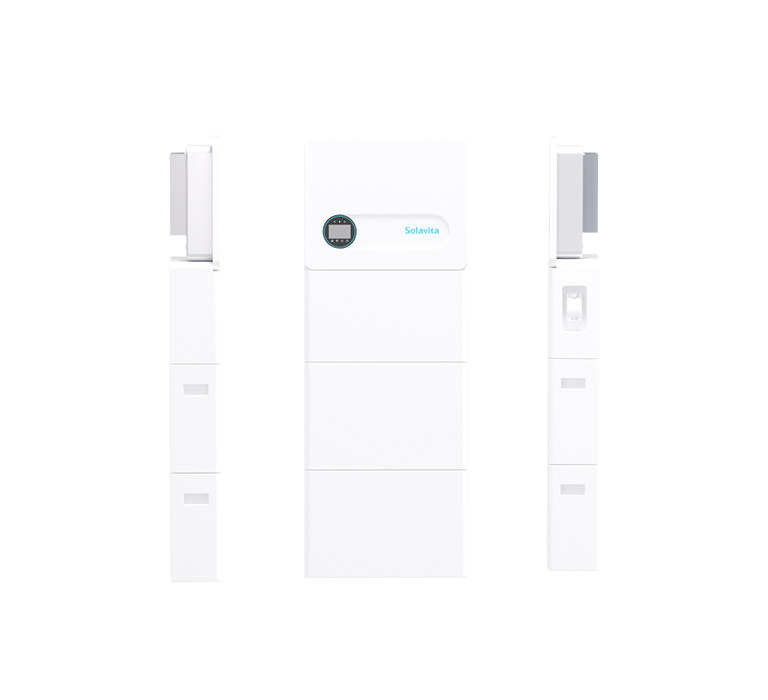

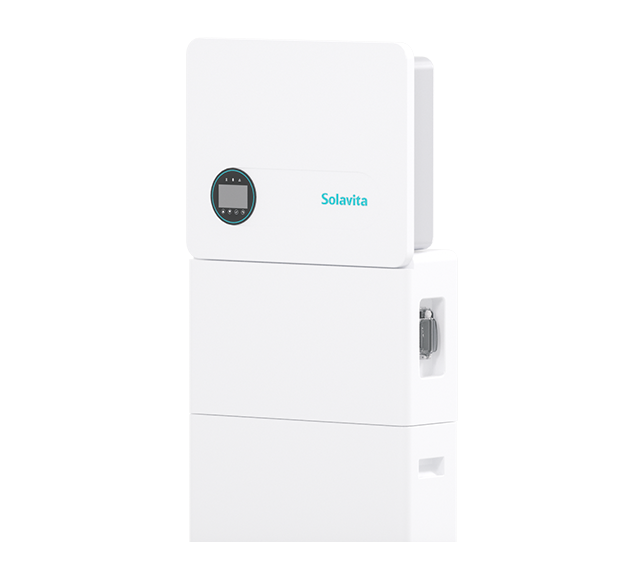

SWES 3-6H-S1
Single Phase Hybrid Inverter (HV)
Flexible Control & Monitoring
Multi-channel MPPT design, this inverter can monitor the power of PV strings in different directions flexibly. At the same time, multiple communication mode can upload the operating parameters of to the cloud automatically. Combined with Solavita Cloud，users can achieve 24h-data smart operation to protect the home power safety.
-
Multiple MPPT
-
4G/WIFI/Ethernet Communication
-
Remote monitoring, real-time control
Module+ Optimization, Highest performance at all times
Built-in BMS management system manages each battery module independently. When the performance of one battery pack drops, the others will still work optimally to produce maximum energy. Expandable up to 15.36 kWh.
Available energy can be increased by more than 10% over the entire life cycle.
-
Expandable up to 15.36 kWh -
BMS management
Higher Power Generation,Higher Return
Despite its compact size, the SWES 3-6kw ESS features 150% DC overload capability for full load output in extreme weather conditions; sustained 110% AC overload output for an additional 10% output over the rated power; and start-up voltage（90V） allows the inverter to start up earlier to achieve higher power generation.
-
150% DC oversizing -
110% AC outpout overloading -
90 V start-up voltage -
UPS level less than 10ms
Core Parameters
-
Max. Input Voltage600V
-
MPPT Voltage Range80-560V
-
Start-up Voltage90V
-
Battery Type.Li-ion Iron Phosphate（LFP）
-
MPPT Voltage Range80-560V
-
Rated Grid Frequency [Hz]50/60
-
Depth of Discharge90%
-
Safety RegulationIEC62619、IEC62040-1、IEC63056、VDE2510、 CE 、CEC
-
CommunicationWIFI/RS485/LAN
Effortless Swipe, Exceptional Performance
Developed with Top-Tier Technology and Rigorous Testing, What You See Is What You Get
Product Model
-
SWES3000H-S1
-
SWES4000H-S1
-
SWES5000H-S1
-
SWES6000H-S1
-
- Model
- SWES3000H-S1
-
-
Recommended Max. PV Power [Wp]4500
-
Max. Input Voltage [V]600
-
MPPT Voltage Range [V]80-560
-
Rated Input Voltage [V]360
-
Start-up Voltage [V]90
-
No.of MPPT Trackers1
-
No. of PV Strings per MPPT1
-
Max. Input Current per MPPT [A]14
-
Max. Short Circuit Current per MPPT [A]18
-
Rated Output Voltage [V]220 / 230 / 240
-
Rated Grid Frequency [Hz]50 / 60
-
Rated Output Power [W]3000
-
Max. Apparent Output Power [VA]3300
-
Rated Output Voltage [V](Backup)220 / 230 / 240
-
Rated Output Frequency [Hz](Backup)50 / 60
-
Rated Output Power [W](Backup)3000
-
Max. Output Apparent Power [VA](Backup)3300
-
Rated Output Current [A](Backup)15
-
Peak Output Power,Duration [VA,s](Backup)4500, 60
-
Switch Time [ms]10
-
TopologyTransformerless
-
Dimensions (W*H*D)[mm]536*444*173
-
Weight [kg]18.5
-
ModelSWR5120-S1
-
Battery typeLithium Iron Phosphate(LFP)
-
Nominal Capacity[Kwh]5.12
-
Depth of Discharge90%
-
Dimensions (W*H*D) [mm]536*335*190
-
Weight [Kg]50
-
Safety RegulationIEC62619、IEC62040-1、IEC63056、VDE2510、 CE 、CEC
-
System configurationSWH3000～6000H-S1+N*SWR5120-S1Communication
-
CommunicationWIFI/RS485/LAN
-
Operating Temperature Range [℃]﹣25～＋60
-
Relative Humidity0%~100%, Non-condensing
-
Operation Altitude [m]≤2000
-
Cooling ConceptNatural cooling
-
Protection LevelIP66
InverterBatterySystem Parameters -
-
- Model
- SWES4000H-S1
-
-
Recommended Max. PV Power [Wp]6000
-
Max. Input Voltage [V]600
-
MPPT Voltage Range [V]80-560
-
Rated Input Voltage [V]360
-
Start-up Voltage [V]90
-
No.of MPPT Trackers2
-
No. of PV Strings per MPPT1/1
-
Max. Input Current per MPPT [A]14/14
-
Max. Short Circuit Current per MPPT [A]18/18
-
Rated Output Voltage [V]220 / 230 / 240
-
Rated Grid Frequency [Hz]50 / 60
-
Rated Output Power [W]4000
-
Max. Apparent Output Power [VA]4400
-
Rated Output Voltage [V](Backup)220 / 230 / 240
-
Rated Output Frequency [Hz](Backup)50 / 60
-
Rated Output Power [W](Backup)4000
-
Max. Output Apparent Power [VA](Backup)4400
-
Rated Output Current [A](Backup)20
-
Peak Output Power,Duration [VA,s](Backup)6000, 60
-
Switch Time [ms]10
-
TopologyTransformerless
-
Dimensions (W*H*D)[mm]536*444*173
-
Weight [kg]18.5
-
ModelSWR5120-S1
-
Battery typeLithium Iron Phosphate(LFP)
-
Nominal Capacity[Kwh]5.12
-
Depth of Discharge90%
-
Dimensions (W*H*D) [mm]536*335*190
-
Weight [Kg]50
-
Safety RegulationIEC62619、IEC62040-1、IEC63056、VDE2510、 CE 、CEC
-
System configurationSWH3000～6000H-S1+N*SWR5120-S1Communication
-
CommunicationWIFI/RS485/LAN
-
Operating Temperature Range [℃]﹣25～＋60
-
Relative Humidity0%~100%, Non-condensing
-
Operation Altitude [m]≤2000
-
Cooling ConceptNatural cooling
-
Protection LevelIP66
InverterBatterySystem Parameters -
-
- Model
- SWES5000H-S1
-
-
Recommended Max. PV Power [Wp]7500
-
Max. Input Voltage [V]600
-
MPPT Voltage Range [V]80-560
-
Rated Input Voltage [V]360
-
Start-up Voltage [V]90
-
No.of MPPT Trackers2
-
No. of PV Strings per MPPT1/1
-
Max. Input Current per MPPT [A]14/14
-
Max. Short Circuit Current per MPPT [A]18/18
-
Rated Output Voltage [V]220 / 230 / 240
-
Rated Grid Frequency [Hz]50 / 60
-
Rated Output Power [W]5000
-
Max. Apparent Output Power [VA]5500
-
Rated Output Voltage [V](Backup)220 / 230 / 240
-
Rated Output Frequency [Hz](Backup)50 / 60
-
Rated Output Power [W](Backup)5000
-
Max. Output Apparent Power [VA](Backup)5500
-
Rated Output Current [A](Backup)25
-
Peak Output Power,Duration [VA,s](Backup)7500, 60
-
Switch Time [ms]10
-
TopologyTransformerless
-
Dimensions (W*H*D)[mm]536*444*173
-
Weight [kg]18.5
-
ModelSWR5120-S1
-
Battery typeLithium Iron Phosphate(LFP)
-
Nominal Capacity[Kwh]5.12
-
Depth of Discharge90%
-
Dimensions (W*H*D) [mm]536*335*190
-
Weight [Kg]50
-
Safety RegulationIEC62619、IEC62040-1、IEC63056、VDE2510、 CE 、CEC
-
System configurationSWH3000～6000H-S1+N*SWR5120-S1Communication
-
CommunicationWIFI/RS485/LAN
-
Operating Temperature Range [℃]﹣25～＋60
-
Relative Humidity0%~100%, Non-condensing
-
Operation Altitude [m]≤2000
-
Cooling ConceptNatural cooling
-
Protection LevelIP66
InverterBatterySystem Parameters -
-
- Model
- SWES6000H-S1
-
-
Recommended Max. PV Power [Wp]9000
-
Max. Input Voltage [V]600
-
MPPT Voltage Range [V]80-560
-
Rated Input Voltage [V]360
-
Start-up Voltage [V]90
-
No.of MPPT Trackers2
-
No. of PV Strings per MPPT1/1
-
Max. Input Current per MPPT [A]14/14
-
Max. Short Circuit Current per MPPT [A]18/18
-
Rated Output Voltage [V]220 / 230 / 240
-
Rated Grid Frequency [Hz]50 / 60
-
Rated Output Power [W]6000
-
Max. Apparent Output Power [VA]6600
-
Rated Output Voltage [V](Backup)220 / 230 / 240
-
Rated Output Frequency [Hz](Backup)50 / 60
-
Rated Output Power [W](Backup)6000
-
Max. Output Apparent Power [VA](Backup)6600
-
Rated Output Current [A](Backup)30
-
Peak Output Power,Duration [VA,s](Backup)7500, 60
-
Switch Time [ms]10
-
TopologyTransformerless
-
Dimensions (W*H*D)[mm]536*444*173
-
Weight [kg]18.5
-
ModelSWR5120-S1
-
Battery typeLithium Iron Phosphate(LFP)
-
Nominal Capacity[Kwh]5.12
-
Depth of Discharge90%
-
Dimensions (W*H*D) [mm]536*335*190
-
Weight [Kg]50
-
Safety RegulationIEC62619、IEC62040-1、IEC63056、VDE2510、 CE 、CEC
-
System configurationSWH3000～6000H-S1+N*SWR5120-S1Communication
-
CommunicationWIFI/RS485/LAN
-
Operating Temperature Range [℃]﹣25～＋60
-
Relative Humidity0%~100%, Non-condensing
-
Operation Altitude [m]≤2000
-
Cooling ConceptNatural cooling
-
Protection LevelIP66
InverterBatterySystem Parameters -
-
