SWH 3-6KTL-S1

Single Phase Hybrid Inverter (HV)

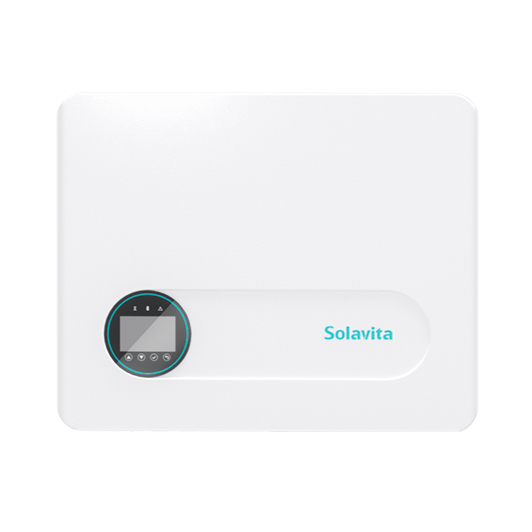

The front and side view of the Solavita single-phase 3-6kW hybrid inverter showcases its sleek design with a compact white exterior, central control display, and multiple connection ports at the bottom. This hybrid inverter is ideal for residential applications, combining efficiency and modern aesthetics for home solar energy storage systems
Buy Now

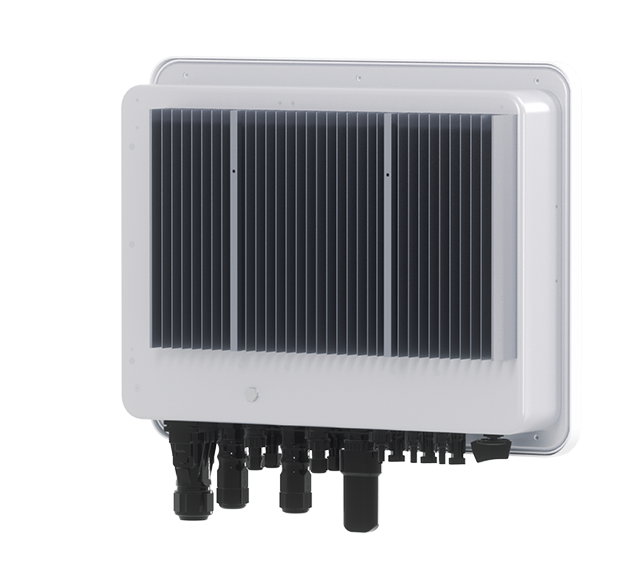

Back view of the Solavita single-phase hybrid inverter, displaying its robust cooling fins and various connection ports, optimized for home solar energy storage integration. Compatible with a 5.12kW battery pack, this hybrid inverter is designed to support efficient energy management in residential settings.

More Friendly & Safe Design

Our single-phase hybrid inverter features a well-engineered inductor layout, ensuring optimal performance and efficiency. It boasts an IP66 waterproof rating, offering robust protection against water and dust. Moreover, the inverter is equipped with type Ⅱ surge protection and AFCI for enhanced safety and reliability, making it a top choice for secure and efficient energy management.

  • b2_icon_01.svg

    Fanless design for quiet operation

  • b2_icon_02.svg

    IP66

  • icon_03.svg

    AFCI

  • icon_04.svg

    Type Ⅱ SPO and both DC and AC

Flexible Control & Monitoring

Users can enjoy smart energy management with 24-hour load consumption monitoring enabled by Solavita Cloud. Thanks to the integrated export power limit,the inverter can adapt to the power limit imposed by the local energy provider. Smart solution, smart energy.

  • icon_05.svg
    24h-data smart monitoring
  • icon_06.svg
    4G/WIFI/Ethernet Communication
Solavita single-phase hybrid inverter back panel showing multiple DC and AC connectors, optimized for home solar energy storage systems with versatile connectivity options." This description captures the key details of the image, highlighting the connectivity features and intended application of the inverter in home solar energy storage setups
Higher Power Generation

Despite its compact size, the SWH 3-6kw single-phase hybrid inverter features 150% DC overload capability for full load output in extreme weather conditions; sustained 110% AC overload output for an additional 10% output over the rated power; and start-up voltage（80V） allows the inverter to start up earlier to achieve higher power generation.

  • b2_icon_07.svg
    150% DC oversizing
  • b2icon07.svg
    110% AC outpout overloading
  • b2icon07.svg
    80 V start-up voltage

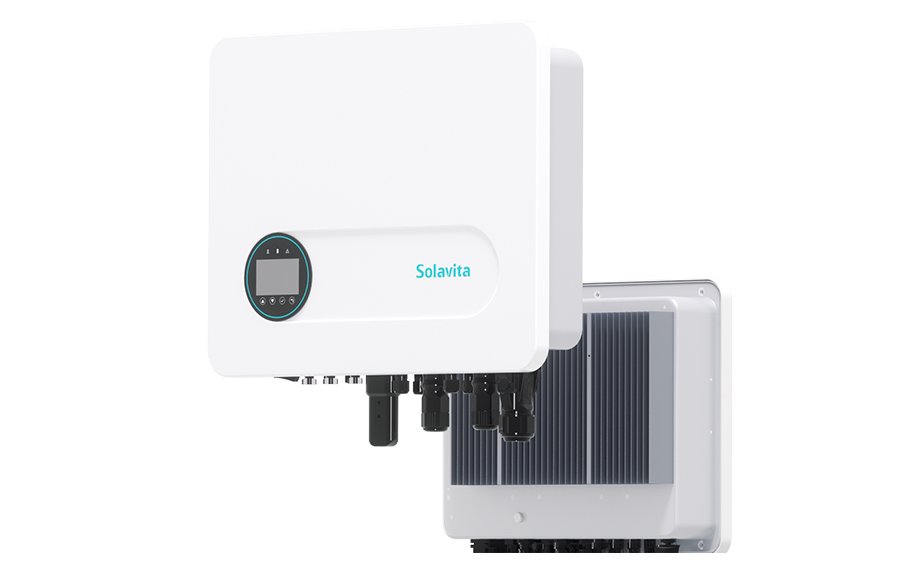

Solavita single-phase 3-6kW hybrid inverter with a sleek white panel design, rounded edges, and a central LCD display bordered in black. Multiple ports and connectors are positioned at the bottom, enhancing connectivity for efficient home solar energy storage integration

Core Parameters

  • Max. Input Voltage
    600V
  • MPPT Voltage Range
    80-580V
  • Start-up Voltage
    90V
  • Battery Type.
    Lithium Iron Phosphate（LFP）
  • Battery Voltage Range
    80-450V
  • Battery Communication
    CAN/RS485
  • Switch Time
    10 ms
  • Euro Efficiency
    97%
  • Communication
    WIFI/RS485/LAN
Side view of the Solavita single-phase 3-6kW hybrid inverter, showcasing its modern, sleek design with a minimalist white casing. The front panel features a digital display screen encircled by control buttons for monitoring and configuration. The Solavita logo is prominently displayed in turquoise on the front surface, adding brand visibility. Below the unit are several input and output connectors, designed for seamless integration with solar panels and battery systems. The rear side of the inverter displays a structured heat sink, ensuring efficient thermal management, which is essential for prolonged operation in residential energy storage applications.

Effortless Swipe, Exceptional Performance

Developed with Top-Tier Technology and Rigorous Testing, What You See Is What You Get

Promotional banner for the Solavita single-phase hybrid inverter model SWH3000-6000H-S1, set against a dark, moonlit landscape. The sleek, compact design of the hybrid inverter is showcased, hovering above a rocky platform in a futuristic, minimalist environment. The text emphasizes its efficiency and compact energy capacity with phrases like 'Sleek and Efficient' and 'Big Energy in A Small Size.' Solavita's tagline, 'Lead The Way to Green Life,' is displayed in the top right, reinforcing the brand's commitment to sustainable energy solutions
  • Front view of Solavita single-phase 3-6kW hybrid inverter, featuring a minimalist white rectangular body with smooth edges and a circular black display panel, providing a modern and compact design suitable for residential use
  • Front view of Solavita single-phase 3-6kW hybrid inverter, featuring a minimalist white rectangular body with smooth edges and a circular black display panel, providing a modern and compact design suitable for residential use
  • Front view of Solavita single-phase 3-6kW hybrid inverter, featuring a minimalist white rectangular body with smooth edges and a circular black display panel, providing a modern and compact design suitable for residential use
  • Front view of Solavita single-phase 3-6kW hybrid inverter, featuring a minimalist white rectangular body with smooth edges and a circular black display panel, providing a modern and compact design suitable for residential use

Product Model

  • SWH3000H-S1
  • SWH4000H-S1
  • SWH5000H-S1
  • SWH6000H-S1
    • Model
    • SWH3000H-S1
      • PV Input
      • Recommended Max. PV Input Power [Wp]
        4500
      • Max. Input Voltage [V]
        600
      • MPPT Voltage Range [V]
        80-580
      • Rated Voltage [V]
        360
      • Start-up Voltage [V]
        90
      • No. of MPPT Trackers
        1
      • No. of PV Strings per MPPT
        1
      • Max. Input Current per MPPT [A]
        14
      • Max. Short Circuit Current per MPPT [A]
        18
        • AC Output
      • Rated Output Power [W]
        3000
      • Rated Output Current [A]
        13.6
      • Max. Output Current [A]
        15
      • Max. Apparent Output Power [VA]
        3300
      • Rated Output Voltage [V]
        220/230
      • Rated Grid Frequency [Hz]
        50/60
      • Power Factor
        1/(0.8leading-0.8lagging)
      • THDi (Rated Output Power)
        <3%
        • AC Input (Grid)
      • Max. Apparent Input Power [VA]
        6000
      • Max. Input Current [A]
        27.3
      • Rated Output Voltage [V]
        220/230
      • Rated Grid Frequency [Hz]
        50/60
        • Battery
      • Battery Module Type
        Lithium Iron Phosphate (LFP)
      • Battery Voltage Range [V]
        80-450
      • Max. Charge/Discharge Current [A]
        25
      • Max. Charge Power [W]
        4500
      • Max Discharge Power [W]
        3300
      • Battery Communication
        CAN/RS485
        • AC Output (Backup)
      • Rated Output Power [W]
        3000
      • Rated Output Voltage [V]
        220/230
      • Rated Output Frequency [Hz]
        50/60
      • Rated Output Current [A]
        13.6
      • THDi (Rated Output Power)
        <3%
      • Switch Time [ms]
        10
      • Peak Apparent Power, Duration [VA, s]
        4500, 60
        • Efficiency
      • Max. Efficiency
        97.8%
      • Euro Efficiency
        97%
      • Battery Charged/Discharged to AC Max. Efficiency
        98.5%@Charge/97.0%@Discharge
        • Protection
      • DC Switch
        Integrated
      • Insulation Resistance Detection
        Integrated
      • Input Reverse Polarity Protection
        Integrated
      • Anti-island Protection
        Integrated
      • Residual Current Monitoring
        Integrated
      • Overtemperature Protection
        Integrated
      • DC Surge Protection
        Integrated (Type Il)
      • AC Surge Protection
        Integrated (Type Il)
        • General Data
      • Dimensions (W*H*D)[mm]
        536*444*173
      • Weight [kg]
        18.5
      • Display
        LCD/WEB/APP
      • Communication
        WIFI/RS485/LAN
      • Operating Temperature Range [C]
        -25~+60;if>45℃,power reduction needed
      • Relative Humidity
        0%~100%, Non-condensing
      • Operation Altitude [m]
        0~4000, if≥2000, Power Reduction Needed
      • Self Consumption(night)[W]
        <8
      • Topology
        Transformerless
      • Cooling Concept
        Natural Cooling
      • Protection level
        IP66
      • Noise
        <30dB
    • Model
    • SWH4000H-S1
      • PV Input
      • Recommended Max. PV Input Power [Wp]
        6000
      • Max. Input Voltage [V]
        600
      • MPPT Voltage Range [V]
        80-580
      • Rated Voltage [V]
        360
      • Start-up Voltage [V]
        90
      • No. of MPPT Trackers
        2
      • No. of PV Strings per MPPT
        1/1
      • Max. Input Current per MPPT [A]
        14/14
      • Max. Short Circuit Current per MPPT [A]
        18/18
        • AC Output
      • Rated Output Power [W]
        4000
      • Rated Output Current [A]
        18.2
      • Max. Output Current [A]
        20
      • Max. Apparent Output Power [VA]
        4400
      • Rated Output Voltage [V]
        220/230
      • Rated Grid Frequency [Hz]
        50/60
      • Power Factor
        1/0.8(leading)-0.8(lagging)
      • THDi (Rated Output Power)
        <3%
        • AC Input (Grid)
      • Max. Apparent Input Power [VA]
        8000
      • Max. Input Current [A]
        36.4
      • Rated Output Voltage [V]
        220/230
      • Rated Grid Frequency [Hz]
        50/60
        • Battery
      • Battery Module Type
        Lithium Iron Phosphate（LFP）
      • Battery Voltage Range [V]
        80-450
      • Max. Charge/Discharge Current [A]
        25
      • Max. Charge Power [W]
        6000
      • Max Discharge Power [W]
        4400
      • Battery Communication
        CAN/RS485
        • AC Output (Backup)
      • Rated Output Power [W]
        4000
      • Rated Output Voltage [V]
        220/230
      • Rated Output Frequency [Hz]
        50/60
      • Rated Output Current [A]
        18.2
      • THDi (Rated Output Power)
        <3%
      • Switch Time [ms]
        10
      • Peak Apparent Power, Duration [VA, s]
        6000, 60
        • Efficiency
      • Max. Efficiency
        97.8%
      • Euro Efficiency
        97%
      • Battery Charged/Discharged to AC Max. Efficiency
        98.5%@Charge/97.0%@Discharge
        • Protection
      • DC Switch
        Integrated
      • Insulation Resistance Detection
        Integrated
      • Input Reverse Polarity Protection
        Integrated
      • Anti-island Protection
        Integrated
      • Residual Current Monitoring
        Integrated
      • Overtemperature Protection
        Integrated
      • DC Surge Protection
        Integrated (Type Il)
      • AC Surge Protection
        Integrated (Type Il)
        • General Data
      • Dimensions (W*H*D)[mm]
        536*444*173
      • Weight [kg]
        18.5
      • Display
        LCD/WEB/APP
      • Communication
        WIFI/RS485/APP
      • Operating Temperature Range [C]
        -25~+60;if>45℃,Power reduction needed
      • Relative Humidity
        0%~100%, Non-condensing
      • Operation Altitude [m]
        0~4000, if≥2000, Power Reduction Needed
      • Self Consumption(night)[W]
        <8
      • Topology
        Transformerless
      • Cooling Concept
        Natural Convection
      • Protection level
        IP66
      • Noise
        <30dB
    • Model
    • SWH5000H-S1
      • PV Input
      • Recommended Max. PV Input Power [Wp]
        7500
      • Max. Input Voltage [V]
        600
      • MPPT Voltage Range [V]
        80-580
      • Rated Voltage [V]
        360
      • Start-up Voltage [V]
        90
      • No. of MPPT Trackers
        2
      • No. of PV Strings per MPPT
        1/1
      • Max. Input Current per MPPT [A]
        14/14
      • Max. Short Circuit Current per MPPT [A]
        18/18
        • AC Output
      • Rated Output Power [W]
        5000
      • Rated Output Current [A]
        22.7
      • Max. Output Current [A]
        25
      • Max. Apparent Output Power [VA]
        5500
      • Rated Output Voltage [V]
        220/230
      • Rated Grid Frequency [Hz]
        50/60
      • Power Factor
        1/0.8(leading)-0.8(lagging)
      • THDi (Rated Output Power)
        <3%
        • AC Input (Grid)
      • Max. Apparent Input Power [VA]
        10000
      • Max. Input Current [A]
        45.5
      • Rated Output Voltage [V]
        220/230
      • Rated Grid Frequency [Hz]
        50/60
        • Battery
      • Battery Module Type
        Lithium Iron Phosphate（LFP）
      • Battery Voltage Range [V]
        80-450
      • Max. Charge/Discharge Current [A]
        25
      • Max. Charge Power [W]
        7500
      • Max Discharge Power [W]
        5500
      • Battery Communication
        CAN/RS485
        • AC Output (Backup)
      • Rated Output Power [W]
        5000
      • Rated Output Voltage [V]
        220/230
      • Rated Output Frequency [Hz]
        50/60
      • Rated Output Current [A]
        22.7
      • THDi (Rated Output Power)
        <3%
      • Switch Time [ms]
        10
      • Peak Apparent Power, Duration [VA, s]
        7500, 60
        • Efficiency
      • Max. Efficiency
        97.80%
      • Euro Efficiency
        97%
      • Battery Charged/Discharged to AC Max. Efficiency
        98.5%@Charge/97.0%@Discharge
        • Protection
      • DC Switch
        Integrated
      • Insulation Resistance Detection
        Integrated
      • Input Reverse Polarity Protection
        Integrated
      • Anti-island Protection
        Integrated
      • Residual Current Monitoring
        Integrated
      • Overtemperature Protection
        Integrated
      • DC Surge Protection
        Integrated (Type Il)
      • AC Surge Protection
        Integrated (Type Il)
        • General Data
      • Dimensions (W*H*D)[mm]
        536*444*173
      • Weight [kg]
        18.5
      • Display
        LCD/WEB/APP
      • Communication
        RS485/WIFI/LAN
      • Operating Temperature Range [C]
        -25~+60；if>45℃，power reduction needed
      • Relative Humidity
        0%~100%, Non-condensing
      • Operation Altitude [m]
        0~4000, if≥2000, Power Reduction Needed
      • Self Consumption(night)[W]
        <8
      • Topology
        Transformerless
      • Cooling Concept
        Natural Cooling
      • Protection level
        IP66
      • Noise
        <30dB
    • Model
    • SWH6000H-S1
      • PV Input
      • Recommended Max. PV Input Power [Wp]
        9000
      • Max. Input Voltage [V]
        600
      • MPPT Voltage Range [V]
        80-580
      • Rated Voltage [V]
        360
      • Start-up Voltage [V]
        90
      • No. of MPPT Trackers
        2
      • No. of PV Strings per MPPT
        1/1
      • Max. Input Current per MPPT [A]
        14/14
      • Max. Short Circuit Current per MPPT [A]
        18/18
        • AC Output
      • Rated Output Power [W]
        6000
      • Rated Output Current [A]
        27.3
      • Max. Output Current [A]
        30
      • Max. Apparent Output Power [VA]
        6600
      • Rated Output Voltage [V]
        220/230
      • Rated Grid Frequency [Hz]
        50/60
      • Power Factor
        1/（0.8leading-0.8lagging)
      • THDi (Rated Output Power)
        <3%
        • AC Input (Grid)
      • Max. Apparent Input Power [VA]
        12000
      • Max. Input Current [A]
        54.5
      • Rated Output Voltage [V]
        220/230
      • Rated Grid Frequency [Hz]
        50/60
        • Battery
      • Battery Module Type
        Lithium Iron Phosphate（LFP）
      • Battery Voltage Range [V]
        80-450
      • Max. Charge/Discharge Current [A]
        25
      • Max. Charge Power [W]
        9000
      • Max Discharge Power [W]
        6600
      • Battery Communication
        CAN/RS485
        • AC Output (Backup)
      • Rated Output Power [W]
        6000
      • Rated Output Voltage [V]
        220/230
      • Rated Output Frequency [Hz]
        50/60
      • Rated Output Current [A]
        27.3
      • THDi (Rated Output Power)
        <3%
      • Switch Time [ms]
        10
      • Peak Apparent Power, Duration [VA, s]
        7500, 60
        • Efficiency
      • Max. Efficiency
        97.80%
      • Euro Efficiency
        97%
      • Battery Charged/Discharged to AC Max. Efficiency
        98.5%@Charge/97.0%@Discharge
        • Protection
      • DC Switch
        Integrated
      • Insulation Resistance Detection
        Integrated
      • Input Reverse Polarity Protection
        Integrated
      • Anti-island Protection
        Integrated
      • Residual Current Monitoring
        Integrated
      • Overtemperature Protection
        Integrated
      • DC Surge Protection
        Integrated (Type Il)
      • AC Surge Protection
        Integrated (Type Il)
        • General Data
      • Dimensions (W*H*D)[mm]
        536*444*173
      • Weight [kg]
        18.5
      • Display
        LCD/WEB/APP
      • Communication
        RS485/WIFI/LAN
      • Operating Temperature Range [C]
        -25~+60；if>45℃，power reduction needed
      • Relative Humidity
        0%~100%, Non-condensing
      • Operation Altitude [m]
        0~4000, if≥2000, Power Reduction Needed
      • Self Consumption(night)[W]
        <8
      • Topology
        Transformerless
      • Cooling Concept
        Natural Cooling
      • Protection level
        IP66
      • Noise
        <30dB
  • 11-86.jpg
  • 11-86.jpg
  • Residential Solution
    • Smart and Reliable
    • Cost-Saving and Eco-Friendly
    Learn More
  • Residential Energy Storage System Solution
    • Smart and Reliable
    • Cost-Saving and Eco-Friendly
    Learn More
  • a1_icon_03.svg
    PV System Solution
  • a1_icon_16h.svg
    Energy Storage System Solution

Related Products

Global Cases

  • Overhead view of residential rooftop solar panel system equipped with Solavita hybrid inverter and 10.24kWh battery pack, highlighting efficient energy storage solutions
    Residential ESS project in Italy
    • Lecce, Italy
    • Residential
    • 5 kW
      Hybrid Inverter
    • 11 kWh
      Battery
  • Overhead view of residential rooftop solar panel system equipped with Solavita hybrid inverter and 5.12kWh battery pack, highlighting efficient energy storage solutions
    Residential ESS project in Italy
    • Udine, Italy
    • Residential
    • 6 kW
      Hybrid Inverter
    • 8 kWh
      Battery
  • Overhead view of residential rooftop solar panel system equipped with Solavita hybrid inverter and 5.12kWh battery pack, highlighting efficient energy storage solutions
    Residential ESS project in Italy
    • Udine, Italy
    • Residential
    • 8 kW
      Hybrid Inverter
    • 10 kWh
      Battery

Learn More About Our
Products and Services

Newsletter

Stay Informed and Embrace Green Living

Subscribe Now
How can we help you today?
    Related Products
