SWG 320KTL-T1

Three Phase On Grid Inverter (HV)

Rear view of Solavita on-grid inverter showcasing heat dissipation fins and multiple connection ports, optimized for commercial and industrial (C&I) applications. Ideal for efficient power management in three-phase solar inverter systems.

Safe and Reliability

Type II Surge Protection Device (SPD) on both DC and AC sides protects the system from electrical fire and lightning hazards in extreme environments. Furthermore, Equipped with IP66 protection, SW320KTL-T1 Series endures harsh environements for stable performance throughout its life cycle.

Optional AFCI & Smart PID recovery function
IP66 and C5 protection
Type Ⅱ SPO and both DC and AC

Higher power generation,Higher Return

The inverter offers higher power generation efficiency, supports 1.5 times DC overloading,low start-up voltage at 550V, perfectly compatible with mainstream 600W+ PV modules. Additionally, it can operate at 1.1 times its rated capacity for extended periods without derating, ensuring efficient and stable system performance.

110% AC overloading
150% DC oversizing
8 MPPTs
Support Night SVG
High current input，adaptable to 210/182 modules

Bottom view of Solavita on-grid 320kw inverter showcasing PV input and communication ports, designed for efficient integration in solar energy systems, ideal for commercial and industrial installations

Flexible Control & Monitoring

The inverter can monitor the power of PV strings in different directions flexibly. At the same time, multiple communication methods can automatically upload operating parameters to the cloud and support remote software upgrade. Combined with Mysolavita，users can achieve 24h-data smart monitoring to protect the Commerical PV system safety.

Remote firmware upgrade
24h-data smart monitoring

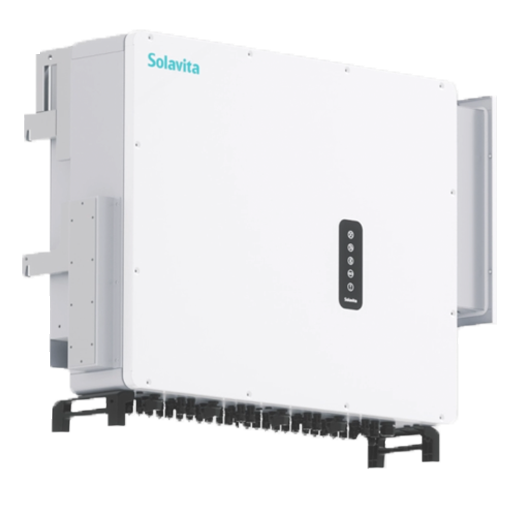

Solavita three-phase on-grid inverter designed for commercial and industrial (C&I) applications, featuring a sleek front panel with multiple connection points for optimized solar energy management.

Core Parameters

Max. Input Voltage

1500V
MPPT Voltage Range

500-1500V
Start-up Voltage

550V
Max. Efficiency

99.05%
EU Efficiency

98.55%
Communication

RS485/PLC
DC/AC Surge Protection

Integrated ( Type Ⅱ）
No. of MPPT Trackers

8
No. of PV Strings per MPPT

4
Max. of Input Current per MPPT [A]

60

Solavita on-grid inverter with dual cooling fans on the side, designed for efficient energy management in residential and commercial applications, showcasing robust three-phase functionality

Effortless Swipe, Exceptional Performance

Developed with Top-Tier Technology and Rigorous Testing, What You See Is What You Get

Solavita on-grid inverter 320kw installed on an exterior wall next to a sleek energy storage unit, set in a modern residential environment with natural greenery, representing a complete solar energy solution for sustainable living

Product Model

SW320KTL-T1

- Model
- SW320KTL-T1
- - Max. Input Voltage [V]

    1500
  - MPPT Voltage Range [V]

    500～1500
  - Rated Input Voltage [V]

    1160
  - Start-up Voltage [V]

    550
  - No.of MPPT Trackers

    16
  - No.of PV Strings per MPPT

    2
  - Max.Input Current per MPPT [A]

    30
  - Max.Short Circuit Current per MPPT [A]

    50
  - Rated Output Power [W]

    320000
  - Max.Output Appearent Power [VA]

    325000
  - Max.Output Current [A]

    254.1
  - Rated Grid Voltage [V]

    3/PE,800
  - Rated Grid Frequency [Hz]

    50/60
  - Power Factor[cosΦ]

    1(+/-0.8,adjustable)
  - Max.Efficiency

    99.05%
  - Euro Efficiency

    98.55%
  - DC Switch

    Integrated
  - Insulation Resistance Monitoring

    Integrated
  - Input Reverse Polarity Protection

    Integrated
  - Anti-island Protection

    Integrated
  - Residual Current Monitoring

    Integrated
  - String Fault Detection

    Integrated
  - DC Surge Protection

    Optional (Type Il)
  - AC Surge Protection

    Optional (Type ll)
  - PID Recovery

    Optional
  - DC Arc Protection

    Optional
  - Night SVG Function

    Optional
  - Dimensions (W*H*D)[mm]

    1230*860*361
  - Weight [kg]

    125
  - Display

    LCD&Bluetooth+APP
  - Communication

    RS485/PLC
  - Operating Temperature Range ['C]

    -30~+60
  - Relative Humidity

    0-100%
  - Operation Altitude [m]

    ≤4000(if>2000,Power Reduction Needed)
  - Topology

    Transformerless
  - Cooling Concept

    Smart Fan-cooling
  - Ingress Protection

    IP66
