SW 15-25KTL-T2

Three Phase On Grid Inverter (HV)

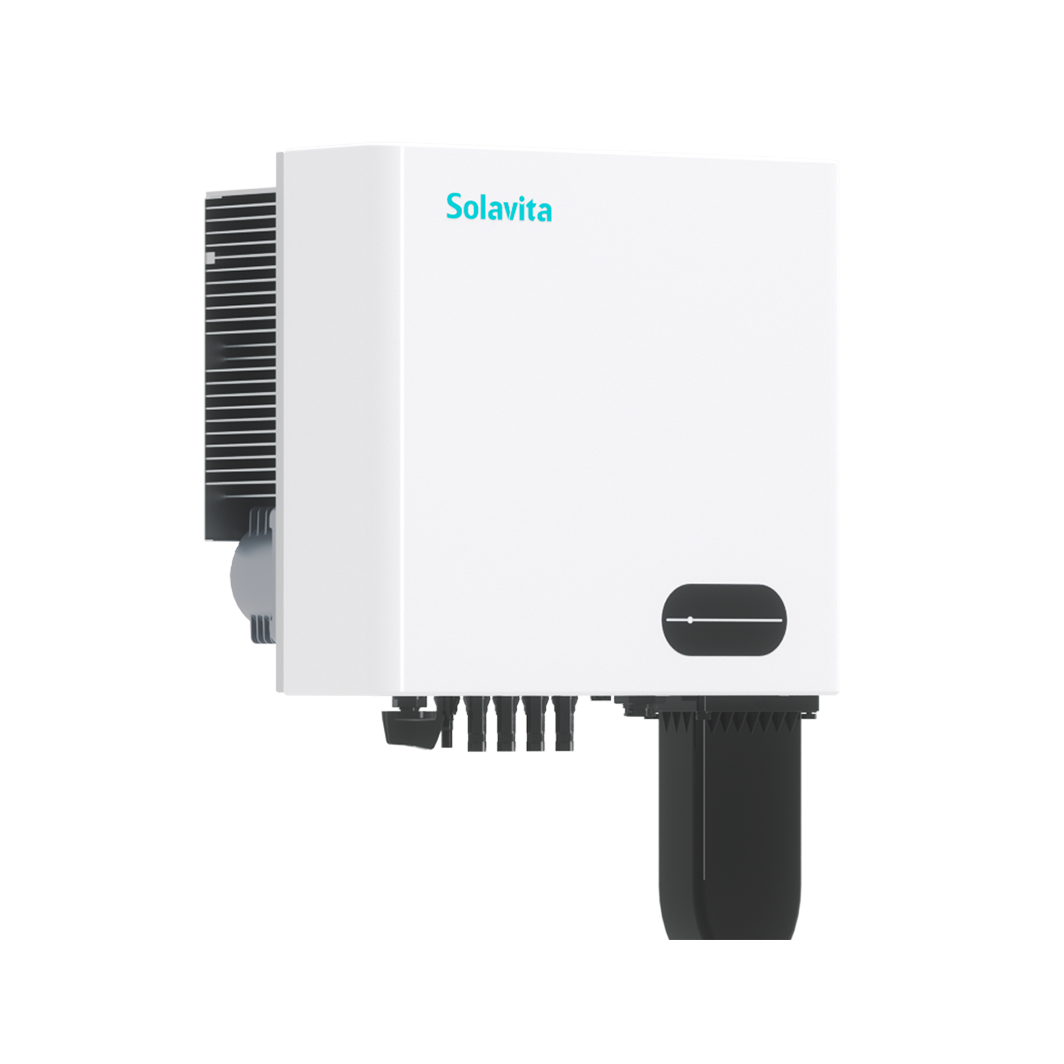

The Solavita PV 15-25kw inverters wall-mounted with the Solavita logo on the central unit. Each inverter features various connectors and a small black panel on the front, providing efficient energy management for modern energy solutions.
Buy Now
A close-up of a Solavita three phase on-grid inverter (7-10kW) with a ribbed back surface and 4 MPPT cables connected at the bottom. The sleek design in white and gray tones highlights its robust functionality, providing a modern energy solution.

More Friendly & Safe Design

Our inverter uses key components from top international brands, ensuring superior reliability. It boasts an IP66 protection rating, making it resilient to extreme temperature variations. The inverter automatically alerts for PV reverse polarity and supports fan self-diagnosis.

  • icon_01.svg

    Optional AFCI

  • icon_02.svg

    Type Ⅱ SPD and both DC and AC

Higher power generation,Higher Return

The inverter offers higher power generation efficiency, supports 1.5 times DC overloading,low start-up voltage at 160V, perfectly compatible with mainstream PV modules. Additionally, it can operate at 1.1 times its rated capacity for extended periods without derating, ensuring efficient and stable system performance.

  • icon_03.svg
    110% AC overloading
  • icon_03.svg
    150% DC oversizing
  • icon_03.svg
    160 V start-up voltage
The Solavita three phase 15-25kW inverter with multiple MPPT black knobs and connectors, mounted on a gray base with vertical metal fins for enhanced cooling, showcasing precise and organized design for solavita efficient energy management.
Flexible Control & Monitoring

Users can enjoy smart energy management with 24-hour load consumption monitoring enabled by Mysolavita. Thanks to the integrated export power limit,the inverter can adapt to the power limit imposed by the local energy provider. Smart solution, smart energy.

  • icon_04.svg
    Remote firmware upgrade
  • icon_05.svg
    24h-data smart monitoring
  • icon_06.svg
    Wifi/4G (Optional)
Array

Core Parameters

  • Max.Input Voltage
    1100V
  • MPPT Voltage Range
    160-1000V
  • Start-up Voltage
    200V
  • Max. Efficiency
    98.6%
  • Euro Efficiency
    98.2%
  • Communication
    Wifi/RS485/4G (Optional)
  • DC/AC Surge Protection
    Integrated (Type Ⅱ)
  • No.of MPPT Trackers
    2
  • No. of PV Strings per MPPT
    2
  • Max. of Input Current per MPPT [A]
    40
The white Solavita inverter features a compact design on both the front and back, with a front display panel and multiple connectors on the bottom, designed for efficient energy management and compatible with the Solavita Cloud for remote monitoring

Effortless Swipe, Exceptional Performance

Developed with Top-Tier Technology and Rigorous Testing, What You See Is What You Get

Promotional banner for Solavita Three-phase PV Inverter showcasing models SW015-25KTL-T2 and SW30-33KTL-T2 with the slogan 'Refined Inside and Outside, Quality You Can Hear,' highlighting premium quality and durability.
  • A white Solavita on-grid three phase 15-25kW inverter with multiple black connectors at the bottom and a small display panel on the front. The Solavita logo appears in blue in the upper left corner, highlighting its streamlined design and efficient functionality.
  • A white Solavita on-grid three phase 15-25kW inverter with multiple black connectors at the bottom and a small display panel on the front. The Solavita logo appears in blue in the upper left corner, highlighting its streamlined design and efficient functionality.
  • A white Solavita on-grid three phase 15-25kW inverter with multiple black connectors at the bottom and a small display panel on the front. The Solavita logo appears in blue in the upper left corner, highlighting its streamlined design and efficient functionality.
  • A white Solavita on-grid three phase 15-25kW inverter with multiple black connectors at the bottom and a small display panel on the front. The Solavita logo appears in blue in the upper left corner, highlighting its streamlined design and efficient functionality.

Product Model

  • SW015KTL-T2
  • SW017KTL-T2
  • SW020KTL-T2
  • SW025KTL-T2
    • Model
    • SW015KTL-T2
      • DC Input
      • Max. Input Voltage [V]
        1100
      • MPPT Voltage Range [V]
        160~1000
      • Rated Input Voltage [V]
        600
      • Start-up Voltage [V]
        200
      • No. of MPPT Trackers
        2
      • No. of PV Strings per MPPT
        2
      • Max. Input Current Per MPPT [A]
        40
      • Max. Short Circuit Current per MPPT [A]
        50
        • AC Output
      • Rated Output Power [W]
        15000
      • Max. Output Appearent Power [VA]
        16500
      • Max. Output Current [A]
        25.1
      • Rated Grid Voltage [V]
        3L/N/PE; 220/380, 230/400
      • Rated Grid Frequency [Hz]
        50/60
      • Power Factor[cosΦ]
        1 (+/-0.8, adjustable)
        • Efficiency
      • Max. Effciency
        98.60%
      • Euro Efficiency
        98.20%
        • Protection
      • DC Switch
        Integrated
      • Insulation Resistance Detection
        Integrated
      • Input Reverse Polarity Protection
        Integrated
      • Anti-island Protection
        Integrated
      • Residual Current Monitoring
        Integrated
      • AC Overcurrent Protection
        Integrated
      • AC Short-Circuit Protection
        Integrated
      • DC Surge Protection
        Integrated (Type ll)
      • AC Surge Protection
        Integrated (Type ll)
      • DC Arc Protection
        Optional
        • General Data
      • Dimensions (W*H*D) [mm]
        405*375*213
      • Weight [kg]
        23
      • Display
        LED/APP
      • Communication
        WiFi/GPRS/4G(Optional)
      • Operating Temperature Range [°C]
        -25~+60
      • Relative Humidity
        0~100%
      • Operation Altitude [m]
        ≤4000(if>2000, derating)
      • Topology
        Transformerless
      • Cooling Concept
        Smart Fan-cooling
      • Ingress Protection
        IP66
    • Model
    • SW017KTL-T2
      • DC Input
      • Max. Input Voltage [V]
        1100
      • MPPT Voltage Range [V]
        160~1000
      • Rated Input Voltage [V]
        600
      • Start-up Voltage [V]
        200
      • No. of MPPT Trackers
        2
      • No. of PV Strings per MPPT
        2
      • Max. Input Current Per MPPT [A]
        40
      • Max. Short Circuit Current per MPPT [A]
        50
        • AC Output
      • Rated Output Power [W]
        17000
      • Max. Output Appearent Power [VA]
        18700
      • Max. Output Current [A]
        27
      • Rated Grid Voltage [V]
        3L/N/PE; 220/380, 230/400
      • Rated Grid Frequency [Hz]
        50/60
      • Power Factor[cosΦ]
        1 (+/-0.8, adjustable)
        • Efficiency
      • Max. Effciency
        98.60%
      • Euro Efficiency
        98.20%
        • Protection
      • DC Switch
        Integrated
      • Insulation Resistance Detection
        Integrated
      • Input Reverse Polarity Protection
        Integrated
      • Anti-island Protection
        Integrated
      • Residual Current Monitoring
        Integrated
      • AC Overcurrent Protection
        Integrated
      • AC Short-Circuit Protection
        Integrated
      • DC Surge Protection
        Integrated (Type ll)
      • AC Surge Protection
        Integrated (Type ll)
      • DC Arc Protection
        Optional
        • General Data
      • Dimensions (W*H*D) [mm]
        405*375*213
      • Weight [kg]
        23
      • Display
        LED/APP
      • Communication
        WiFi/GPRS/4G(Optional)
      • Operating Temperature Range [°C]
        -25~+60
      • Relative Humidity
        0~100%
      • Operation Altitude [m]
        ≤4000(if>2000, derating)
      • Topology
        Transformerless
      • Cooling Concept
        Smart Fan-cooling
      • Ingress Protection
        IP66
    • Model
    • SW020KTL-T2
      • DC Input
      • Max. Input Voltage [V]
        1100
      • MPPT Voltage Range [V]
        160~1000
      • Rated Input Voltage [V]
        600
      • Start-up Voltage [V]
        200
      • No. of MPPT Trackers
        2
      • No. of PV Strings per MPPT
        2
      • Max. Input Current Per MPPT [A]
        40
      • Max. Short Circuit Current per MPPT [A]
        50
        • AC Output
      • Rated Output Power [W]
        20000
      • Max. Output Appearent Power [VA]
        22000
      • Max. Output Current [A]
        32
      • Rated Grid Voltage [V]
        3L/N/PE; 220/380, 230/400
      • Rated Grid Frequency [Hz]
        50/60
      • Power Factor[cosΦ]
        1 (+/-0.8, adjustable)
        • Efficiency
      • Max. Effciency
        98.60%
      • Euro Efficiency
        98.20%
        • Protection
      • DC Switch
        Integrated
      • Insulation Resistance Detection
        Integrated
      • Input Reverse Polarity Protection
        Integrated
      • Anti-island Protection
        Integrated
      • Residual Current Monitoring
        Integrated
      • AC Overcurrent Protection
        Integrated
      • AC Short-Circuit Protection
        Integrated
      • DC Surge Protection
        Integrated (Type ll)
      • AC Surge Protection
        Integrated (Type ll)
      • DC Arc Protection
        Optional
        • General Data
      • Dimensions (W*H*D) [mm]
        405*375*213
      • Weight [kg]
        23
      • Display
        LED/APP
      • Communication
        WiFi/GPRS/4G(Optional)
      • Operating Temperature Range [°C]
        -25~+60
      • Relative Humidity
        0~100%
      • Operation Altitude [m]
        ≤4000(if>2000, derating)
      • Topology
        Transformerless
      • Cooling Concept
        Smart Fan-cooling
      • Ingress Protection
        IP66
    • Model
    • SW025KTL-T2
      • DC Input
      • Max. Input Voltage [V]
        1100
      • MPPT Voltage Range [V]
        160~1000
      • Rated Input Voltage [V]
        600
      • Start-up Voltage [V]
        200
      • No. of MPPT Trackers
        2
      • No. of PV Strings per MPPT
        2
      • Max. Input Current Per MPPT [A]
        40
      • Max. Short Circuit Current per MPPT [A]
        50
        • AC Output
      • Rated Output Power [W]
        25000
      • Max. Output Appearent Power [VA]
        27500
      • Max. Output Current [A]
        40
      • Rated Grid Voltage [V]
        3L/N/PE; 220/380, 230/400
      • Rated Grid Frequency [Hz]
        50/60
      • Power Factor[cosΦ]
        1 (+/-0.8, adjustable)
        • Efficiency
      • Max. Effciency
        98.60%
      • Euro Efficiency
        98.20%
        • Protection
      • DC Switch
        Integrated
      • Insulation Resistance Detection
        Integrated
      • Input Reverse Polarity Protection
        Integrated
      • Anti-island Protection
        Integrated
      • Residual Current Monitoring
        Integrated
      • AC Overcurrent Protection
        Integrated
      • AC Short-Circuit Protection
        Integrated
      • DC Surge Protection
        Integrated (Type ll)
      • AC Surge Protection
        Integrated (Type ll)
      • DC Arc Protection
        Optional
        • General Data
      • Dimensions (W*H*D) [mm]
        405*375*213
      • Weight [kg]
        23
      • Display
        LED/APP
      • Communication
        WiFi/GPRS/4G(Optional)
      • Operating Temperature Range [°C]
        -25~+60
      • Relative Humidity
        0~100%
      • Operation Altitude [m]
        ≤4000(if>2000, derating)
      • Topology
        Transformerless
      • Cooling Concept
        Smart Fan-cooling
      • Ingress Protection
        IP66
