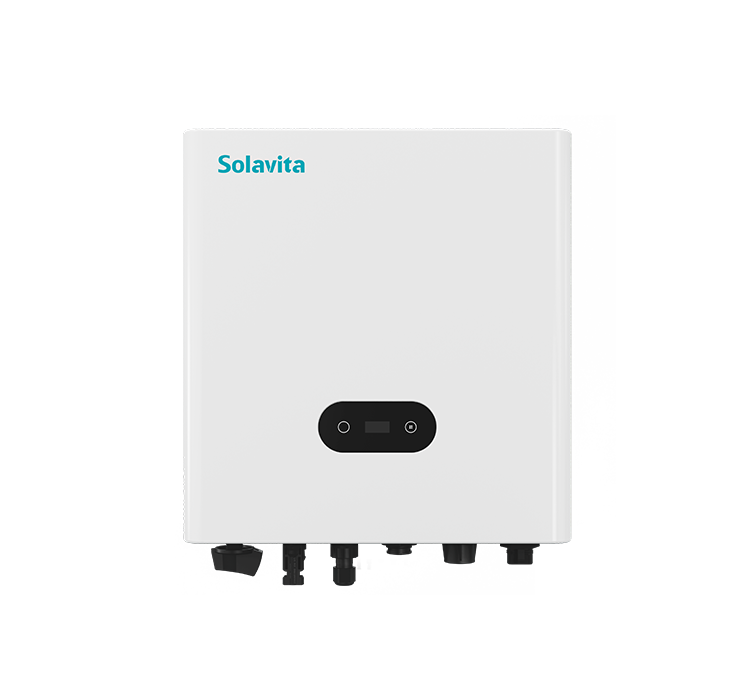

SW 1-3KTL-S1

Single Phase On Grid Inverter (HV)

The white solavita PV inverters (1-3kW) wall-mounted with the Solavita logo on the central unit. Each inverter features various connectors and a small black panel on the front, providing efficient energy management for modern energy solutions.
Buy Now
A close-up of a Solavita on-grid inverter (1-3kW) with a ribbed back surface and three cables connected at the bottom. The sleek design in white and gray tones highlights its robust functionality, providing a modern energy solution.a

More Friendly & Safe Design

Our single-phase on-grid inverter features a well-engineered inductor layout, ensuring optimal performance and efficiency. It boasts an IP66 waterproof rating, offering robust protection against water and dust. Moreover, Weighing less than 5.5 kg, the inverter can be easily installed, fanless natural convection cooling is perfect for indoor installation.

  • b2_icon_01.svg

    Optional AFCI

  • b2_icon_02.svg

    IP66

  • icon_03.svg

    Type Ⅱ SPO and both DC and AC

  • icon_04.svg

    Less than 5.5 kg

Higher power generation, Higher Return

Despite its compact size, the solavita SW 1-3 kw single-phase on-grid inverter features 150% DC overload capability for full load output in extreme weather conditions; sustained 110% AC overload output for an additional 10% output over the rated power; and lower start-up voltage（70V） allows the inverter to start up earlier to achieve higher power generation.

  • icon_05.svg
    110% AC overloading
  • icon_05.svg
    150% DC oversizing
  • icon_05.svg
    70 V start-up voltage
The Solavita on-grid inverter (1-3kW) with multiple MPPT black knobs and connectors, mounted on a gray base with vertical metal fins for enhanced cooling, showcasing precise and organized design for solavita efficient energy management.
Flexible Control & Monitoring

Users can enjoy smart energy management with 24-hour load consumption monitoring enabled by Solavita Cloud. Because of the intergrated export power limit limit,the inverter can adapt to the power limit imposed by the local energy provider. Smart solution, smart energy.

  • icon_06.svg
    Remote firmware upgrade
  • icon_07.svg
    24h-data smart monitoring
  • icon_08.svg
    Wifi/4G (Optional)
A compact white Solavita 1-3kw inverter with a sleek design, featuring a small black display on the front and several connectors at the bottom, compatible with Solavita Cloud Monitoring for real-time energy management and remote monitoring capabilities.

Core Parameters

  • Max. Input Voltage
    550V
  • MPPT Voltage Range
    60-500V
  • Start-up Voltage
    70V
  • Max. Efficiency
    97.40%
  • Euro Efficiency
    96.90%
  • Communication
    RS485/Wifi/LAN/4G (Optional)
  • DC/AC Surge Protection
    Integrated (Type Ⅱ)
  • No. of MPPT Trackers
    1
  • No. of PV Strings per MPPT
    1
  • Max. of Input Current per MPPT [A]
    16
The white Solavita inverter features a compact design on both the front and back, with a front display panel and multiple connectors on the bottom, designed for efficient energy management and compatible with the Solavita Cloud for remote monitoring

Effortless Swipe, Exceptional Performance

Developed with Top-Tier Technology and Rigorous Testing, What You See Is What You Get

Solavita wall-mounted on-grid inverter with Solavita Cloud-enabled battery storage unit installed on an exterior wall, providing efficient residential energy storage and smart monitoring solutions. The setup overlooks a modern patio and garden, illustrating Solavita's integration for seamless energy management
  • A white Solavita on-grid inverter (1-3kW) with multiple black connectors at the bottom and a small display panel on the front. The Solavita logo appears in blue in the upper left corner, highlighting its streamlined design and efficient functionality.
  • A white Solavita on-grid inverter (1-3kW) with multiple black connectors at the bottom and a small display panel on the front. The Solavita logo appears in blue in the upper left corner, highlighting its streamlined design and efficient functionality.
  • A white Solavita on-grid inverter (1-3kW) with multiple black connectors at the bottom and a small display panel on the front. The Solavita logo appears in blue in the upper left corner, highlighting its streamlined design and efficient functionality.
  • A white Solavita on-grid inverter (1-3kW) with multiple black connectors at the bottom and a small display panel on the front. The Solavita logo appears in blue in the upper left corner, highlighting its streamlined design and efficient functionality.
  • A white Solavita on-grid inverter (1-3kW) with multiple black connectors at the bottom and a small display panel on the front. The Solavita logo appears in blue in the upper left corner, highlighting its streamlined design and efficient functionality.
  • A white Solavita on-grid inverter (1-3kW) with multiple black connectors at the bottom and a small display panel on the front. The Solavita logo appears in blue in the upper left corner, highlighting its streamlined design and efficient functionality.

Product Model

  • SW1000TL-S1
  • SW1500TL-S1
  • SW2000TL-S1
  • SW2500TL-S1
  • SW3000TL-S1
  • SW3300TL-S1
    • Model
    • SW1000TL-S1
      • DC Input
      • Max. Input Power [W]
        1500
      • Max. Input Voltage [V]
        550
      • MPPT Voltage Range [V]
        60~500
      • Rated Input Voltage [V]
        360
      • Star-up Voltage [V]
        70
      • No.of MPPT Trackers
        1
      • No.of PV Strings per MPPT
        1
      • Max.Input Current per MPPT [A]
        16
      • Max.Short Circuit Current per MPPT [A]
        20
        • AC Output
      • Rated Output Power [W]
        1000
      • Max.Output Appearent Power [VA]
        1100
      • Max.Output Current [A]
        5
      • Rated Grid Voltage [V]
        L/N/PE,220/230/240
      • Rated Grid Frequency [Hz]
        50/60
      • Power Factor [cosΦ]
        1(+/-0.8, adjustable)
        • Efficiency
      • Max.Efficiency
        97.40%
      • Euro Efficiency
        96.90%
        • Protection
      • DC Switch
        Integrated
      • Insulation Resistance Detection
        Integrated
      • Input Reverse Polarity Protection
        Integrated
      • Anti-island Protection
        Integrated
      • Residual Current Monitoring
        Integrated
      • AC Overcurrent Protection
        Integrated
      • AC Short-Circuit Protection
        Integrated
      • DC Surge Protection
        Integrated (Type ll)
      • AC Surge Protection
        Integrated (Type ll)
      • IV Curve scanning
        Integrated
      • 24-hour load monitoring
        Optional
      • DC Arc Protection
        Optional
        • General Data
      • Dimensions (W*H*D)[mm]
        290*220*120
      • Weight [kg]
        6.3
      • Display
        LED+LCD/Bluetooth+App
      • Communication
        RS485/WiFi/LAN/4G (Optional)
      • Operating Temperature Range ['C]
        -30~+60
      • Humidity
        0~100%
      • Operation Altitude [m]
        ≤4000(if>2000, derating)
      • Topology
        Transformerless
      • Cooling Concept
        Natural cooling
      • Ingress Protection
        IP66
    • Model
    • SW1500TL-S1
      • DC Input
      • Max. Input Power [W]
        2250
      • Max. Input Voltage [V]
        550
      • MPPT Voltage Range [V]
        60~500
      • Rated Input Voltage [V]
        360
      • Star-up Voltage [V]
        70
      • No.of MPPT Trackers
        1
      • No.of PV Strings per MPPT
        1
      • Max.Input Current per MPPT [A]
        16
      • Max.Short Circuit Current per MPPT [A]
        20
        • AC Output
      • Rated Output Power [W]
        1500
      • Max.Output Appearent Power [VA]
        1650
      • Max.Output Current [A]
        7.5
      • Rated Grid Voltage [V]
        L/N/PE,220/230/240
      • Rated Grid Frequency [Hz]
        50/60
      • Power Factor [cosΦ]
        1(+/-0.8, adjustable)
        • Efficiency
      • Max.Efficiency
        97.40%
      • Euro Efficiency
        96.90%
        • Protection
      • DC Switch
        Integrated
      • Insulation Resistance Detection
        Integrated
      • Input Reverse Polarity Protection
        Integrated
      • Anti-island Protection
        Integrated
      • Residual Current Monitoring
        Integrated
      • AC Overcurrent Protection
        Integrated
      • AC Short-Circuit Protection
        Integrated
      • DC Surge Protection
        Integrated (Type ll)
      • AC Surge Protection
        Integrated (Type ll)
      • IV Curve scanning
        Integrated
      • 24-hour load monitoring
        Optional
      • DC Arc Protection
        Optional
        • General Data
      • Dimensions (W*H*D)[mm]
        290*220*120
      • Weight [kg]
        6.3
      • Display
        LED+LCD/Bluetooth+App
      • Communication
        RS485/WiFi/LAN/4G (Optional)
      • Operating Temperature Range ['C]
        -30~+60
      • Humidity
        0~100%
      • Operation Altitude [m]
        ≤4000(if>2000, derating)
      • Topology
        Transformerless
      • Cooling Concept
        Natural cooling
      • Ingress Protection
        IP66
    • Model
    • SW2000TL-S1
      • DC Input
      • Max. Input Power [W]
        3000
      • Max. Input Voltage [V]
        550
      • MPPT Voltage Range [V]
        60~500
      • Rated Input Voltage [V]
        360
      • Star-up Voltage [V]
        70
      • No.of MPPT Trackers
        1
      • No.of PV Strings per MPPT
        1
      • Max.Input Current per MPPT [A]
        16
      • Max.Short Circuit Current per MPPT [A]
        20
        • AC Output
      • Rated Output Power [W]
        2000
      • Max.Output Appearent Power [VA]
        2200
      • Max.Output Current [A]
        10
      • Rated Grid Voltage [V]
        L/N/PE,220/230/240
      • Rated Grid Frequency [Hz]
        50/60
      • Power Factor [cosΦ]
        1(+/-0.8, adjustable)
        • Efficiency
      • Max.Efficiency
        97.40%
      • Euro Efficiency
        96.90%
        • Protection
      • DC Switch
        Integrated
      • Insulation Resistance Detection
        Integrated
      • Input Reverse Polarity Protection
        Integrated
      • Anti-island Protection
        Integrated
      • Residual Current Monitoring
        Integrated
      • AC Overcurrent Protection
        Integrated
      • AC Short-Circuit Protection
        Integrated
      • DC Surge Protection
        Integrated (Type ll)
      • AC Surge Protection
        Integrated (Type ll)
      • IV Curve scanning
        Integrated
      • 24-hour load monitoring
        Optional
      • DC Arc Protection
        Optional
        • General Data
      • Dimensions (W*H*D)[mm]
        290*220*120
      • Weight [kg]
        6.3
      • Display
        LED+LCD/Bluetooth+App
      • Communication
        RS485/WiFi/LAN/4G (Optional)
      • Operating Temperature Range ['C]
        -30~+60
      • Humidity
        0~100%
      • Operation Altitude [m]
        ≤4000(if>2000, derating)
      • Topology
        Transformerless
      • Cooling Concept
        Natural cooling
      • Ingress Protection
        IP66
    • Model
    • SW2500TL-S1
      • DC Input
      • Max. Input Power [W]
        3750
      • Max. Input Voltage [V]
        550
      • MPPT Voltage Range [V]
        60~500
      • Rated Input Voltage [V]
        360
      • Star-up Voltage [V]
        70
      • No.of MPPT Trackers
        1
      • No.of PV Strings per MPPT
        1
      • Max.Input Current per MPPT [A]
        16
      • Max.Short Circuit Current per MPPT [A]
        20
        • AC Output
      • Rated Output Power [W]
        2500
      • Max.Output Appearent Power [VA]
        2750
      • Max.Output Current [A]
        12.5
      • Rated Grid Voltage [V]
        L/N/PE,220/230/240
      • Rated Grid Frequency [Hz]
        50/60
      • Power Factor [cosΦ]
        1(+/-0.8, adjustable)
        • Efficiency
      • Max.Efficiency
        97.40%
      • Euro Efficiency
        96.90%
        • Protection
      • DC Switch
        Integrated
      • Insulation Resistance Detection
        Integrated
      • Input Reverse Polarity Protection
        Integrated
      • Anti-island Protection
        Integrated
      • Residual Current Monitoring
        Integrated
      • AC Overcurrent Protection
        Integrated
      • AC Short-Circuit Protection
        Integrated
      • DC Surge Protection
        Integrated (Type ll)
      • AC Surge Protection
        Integrated (Type ll)
      • IV Curve scanning
        Integrated
      • 24-hour load monitoring
        Optional
      • DC Arc Protection
        Optional
        • General Data
      • Dimensions (W*H*D)[mm]
        290*220*120
      • Weight [kg]
        6.3
      • Display
        LED+LCD/Bluetooth+App
      • Communication
        RS485/WiFi/LAN/4G (Optional)
      • Operating Temperature Range ['C]
        -30~+60
      • Humidity
        0~100%
      • Operation Altitude [m]
        ≤4000(if>2000, derating)
      • Topology
        Transformerless
      • Cooling Concept
        Natural cooling
      • Ingress Protection
        IP66
    • Model
    • SW3000TL-S1
      • DC Input
      • Max. Input Power [W]
        4500
      • Max. Input Voltage [V]
        550
      • MPPT Voltage Range [V]
        60~500
      • Rated Input Voltage [V]
        360
      • Star-up Voltage [V]
        70
      • No.of MPPT Trackers
        1
      • No.of PV Strings per MPPT
        1
      • Max.Input Current per MPPT [A]
        16
      • Max.Short Circuit Current per MPPT [A]
        20
        • AC Output
      • Rated Output Power [W]
        3000
      • Max.Output Appearent Power [VA]
        3300
      • Max.Output Current [A]
        15
      • Rated Grid Voltage [V]
        L/N/PE,220/230/240
      • Rated Grid Frequency [Hz]
        50/60
      • Power Factor [cosΦ]
        1(+/-0.8, adjustable)
        • Efficiency
      • Max.Efficiency
        97.40%
      • Euro Efficiency
        96.90%
        • Protection
      • DC Switch
        Integrated
      • Insulation Resistance Detection
        Integrated
      • Input Reverse Polarity Protection
        Integrated
      • Anti-island Protection
        Integrated
      • Residual Current Monitoring
        Integrated
      • AC Overcurrent Protection
        Integrated
      • AC Short-Circuit Protection
        Integrated
      • DC Surge Protection
        Integrated (Type ll)
      • AC Surge Protection
        Integrated (Type ll)
      • IV Curve scanning
        Integrated
      • 24-hour load monitoring
        Optional
      • DC Arc Protection
        Optional
        • General Data
      • Dimensions (W*H*D)[mm]
        290*220*120
      • Weight [kg]
        6.3
      • Display
        LED+LCD/Bluetooth+App
      • Communication
        RS485/WiFi/LAN/4G (Optional)
      • Operating Temperature Range ['C]
        -30~+60
      • Humidity
        0~100%
      • Operation Altitude [m]
        ≤4000(if>2000, derating)
      • Topology
        Transformerless
      • Cooling Concept
        Natural cooling
      • Ingress Protection
        IP66
    • Model
    • SW3300TL-S1
      • DC Input
      • Max. Input Power [W]
        4950
      • Max. Input Voltage [V]
        550
      • MPPT Voltage Range [V]
        60~500
      • Rated Input Voltage [V]
        360
      • Star-up Voltage [V]
        70
      • No.of MPPT Trackers
        1
      • No.of PV Strings per MPPT
        1
      • Max.Input Current per MPPT [A]
        16
      • Max.Short Circuit Current per MPPT [A]
        20
        • AC Output
      • Rated Output Power [W]
        3300
      • Max.Output Appearent Power [VA]
        3300
      • Max.Output Current [A]
        15
      • Rated Grid Voltage [V]
        L/N/PE,220/230/240
      • Rated Grid Frequency [Hz]
        50/60
      • Power Factor [cosΦ]
        1(+/-0.8, adjustable)
        • Efficiency
      • Max.Efficiency
        97.40%
      • Euro Efficiency
        96.90%
        • Protection
      • DC Switch
        Integrated
      • Insulation Resistance Detection
        Integrated
      • Input Reverse Polarity Protection
        Integrated
      • Anti-island Protection
        Integrated
      • Residual Current Monitoring
        Integrated
      • AC Overcurrent Protection
        Integrated
      • AC Short-Circuit Protection
        Integrated
      • DC Surge Protection
        Integrated (Type ll)
      • AC Surge Protection
        Integrated (Type ll)
      • IV Curve scanning
        Integrated
      • 24-hour load monitoring
        Optional
      • DC Arc Protection
        Optional
        • General Data
      • Dimensions (W*H*D)[mm]
        290*220*120
      • Weight [kg]
        6.3
      • Display
        LED+LCD/Bluetooth+App
      • Communication
        RS485/WiFi/LAN/4G (Optional)
      • Operating Temperature Range ['C]
        -30~+60
      • Humidity
        0~100%
      • Operation Altitude [m]
        ≤4000(if>2000, derating)
      • Topology
        Transformerless
      • Cooling Concept
        Natural cooling
      • Ingress Protection
        IP66
  • 11.jpg
  • 11.jpg
  • Residential PV System Solution
    • Smart and Reliable
    • Cost-Saving and Eco-Friendly
    Learn More
  • Residential Energy Storage System Solution
    • Smart and Reliable
    • Cost-Saving and Eco-Friendly
    Learn More
  • a1_icon_03.svg
    PV System Solution
  • a1_icon_16h.svg
    Energy Storage System Solution

Related Products

Global Cases

  • Solar panel array installed on a red-tiled residential roof in Italy, demonstrating Solavita's renewable energy solutions for efficient home energy production.
    Residential ESS project in Germany
    • Wesel, Italy
    • Residential
    • 2 x 12 kW
      Hybrid Inverter
    • 2 x 20 kWh
      Battery
  • Top-down view of rooftop solar panel installation with Solavita hybrid inverter and battery pack integration, showcasing efficient residential renewable energy solutions
    Residential ESS project in Italy
    • Lecce, Italy
    • Residential
    • 4.6 kW
      Hybrid Inverter
    • 11 kWh
      Battery
  • Overhead view of residential rooftop solar panel system equipped with Solavita hybrid inverter and 10.24kWh battery pack, highlighting efficient energy storage solutions
    Residential ESS project in Italy
    • Lecce, Italy
    • Residential
    • 6 kW
      Hybrid Inverter
    • 11 kWh
      Battery

Learn More About Our
Products and Services

Newsletter

Stay Informed and Embrace Green Living

Subscribe Now
How can we help you today?
    Related Products
