SW 40-60KTL-T2

Three Phase On Grid Inverter (HV)

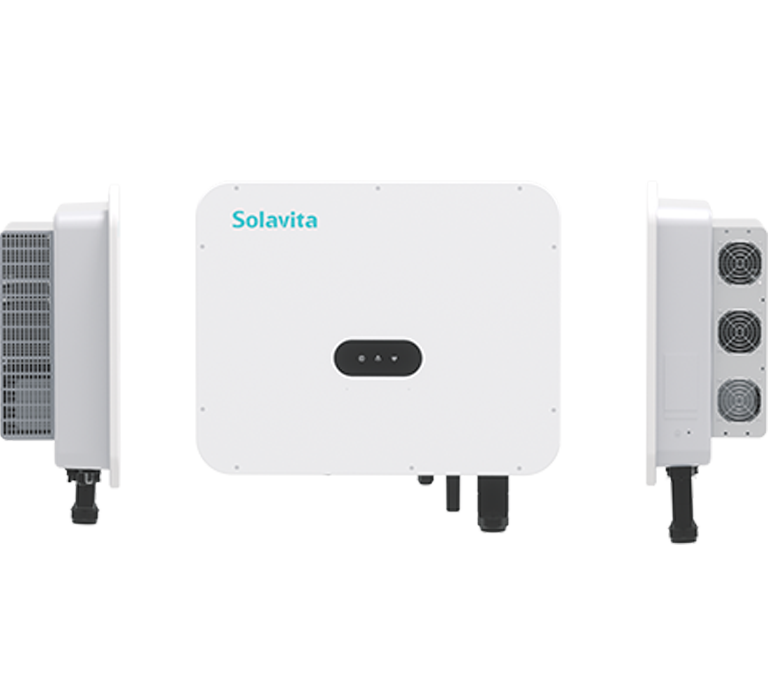

The Solavita PV inverters（40-60kw ） wall-mounted with the Solavita logo on the central unit. Each inverter features various connectors and a small black panel on the front, providing efficient energy management for modern energy solutions.
Buy Now

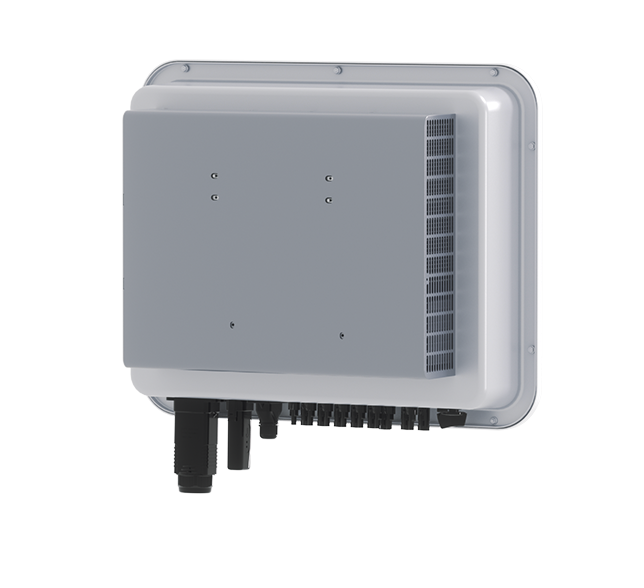

Side view of a white Solavita on-grid inverter, showcasing its advanced cooling fins and multiple connection ports, designed for efficient energy management in solar power systems

Safe and Reliability

Our inverter uses key components from top international brands, ensuring superior reliability. It boasts an IP66 protection rating, making it resilient to extreme temperature variations. The inverter automatically alerts for PV reverse polarity and supports fan self-diagnosis.

  • icon_01.svg

    Optional AFCI & Smart PID recovery function

  • b2_icon_02.svg

    IP66

  • icon_03.svg

    Type Ⅱ SPD and both DC and AC

Higher power generation, Higher Return

The inverter offers higher power generation efficiency, supports 1.5 times DC overloading,low start-up voltage at 200V, perfectly compatible with mainstream 600W+ PV modules. Additionally, it can operate at 1.1 times its rated capacity for extended periods without derating, ensuring efficient and stable system performance.

  • icon_04.svg
    Low start-up voltage at 200V
  • icon_04.svg
    110% AC overloading
  • icon_04.svg
    150% DC oversizing
  • b2icon05.svg
    4 MPPTs

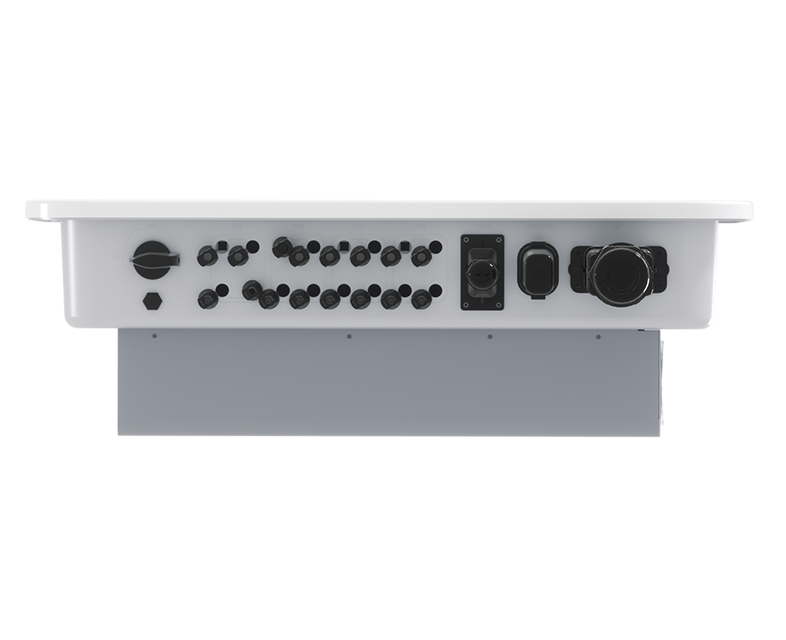

Bottom view of Solavita on-grid inverter showcasing PV input and communication ports, designed for efficient integration in solar energy systems, ideal for commercial and industrial installations
Flexible Control & Monitoring

Solavita three-phase on-grid 40-60kW inverter can monitor the power of PV strings in different directions  flexibly. At the same time, multiple communication methods can automatically upload operating parameters to the cloud and support remote software upgrade. Combined with Solavita Cloud，users can achieve 24h-data smart monitoring to protect the Commerical PV system safety.

  • icon_06.svg
    Remote firmware upgrade
  • icon_07.svg
    24h-data smart monitoring

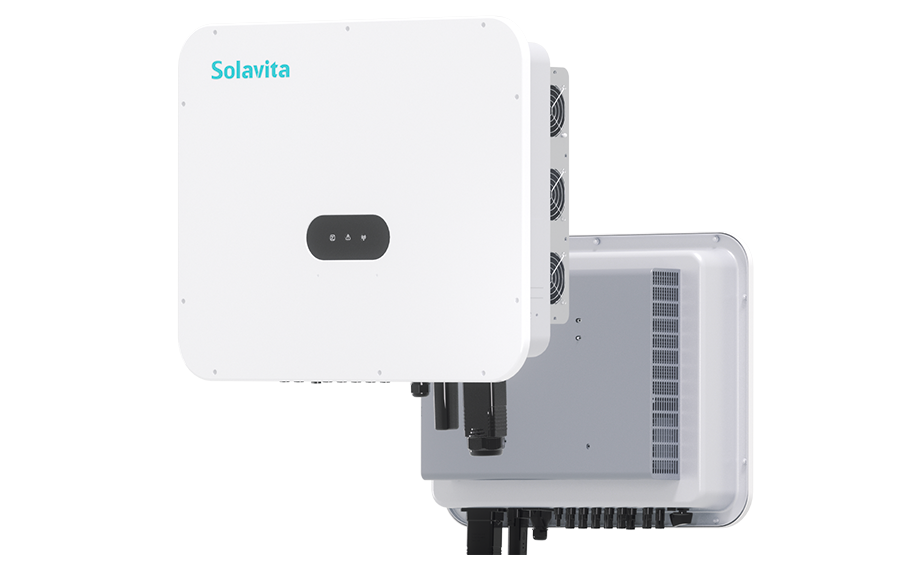

Solavita on-grid inverter with a sleek, white design, suitable for three phase installations in solar energy systems, supporting high power output in 40-60kW configurations.

Core Parameters

  • Max. Input Voltage
    1100V
  • MPPT Voltage Range
    200-1000V
  • Start-up Voltage
    180V
  • Max. Efficiency
    98.80%
  • Euro Efficiency
    98.30%
  • Communication
    LAN/RS485/WIFI/4G (optional)
  • DC/AC Surge Protection
    Integrated (Type Ⅱ)
  • No. of MPPT Trackers
    4
  • No. of PV Strings per MPPT
    2

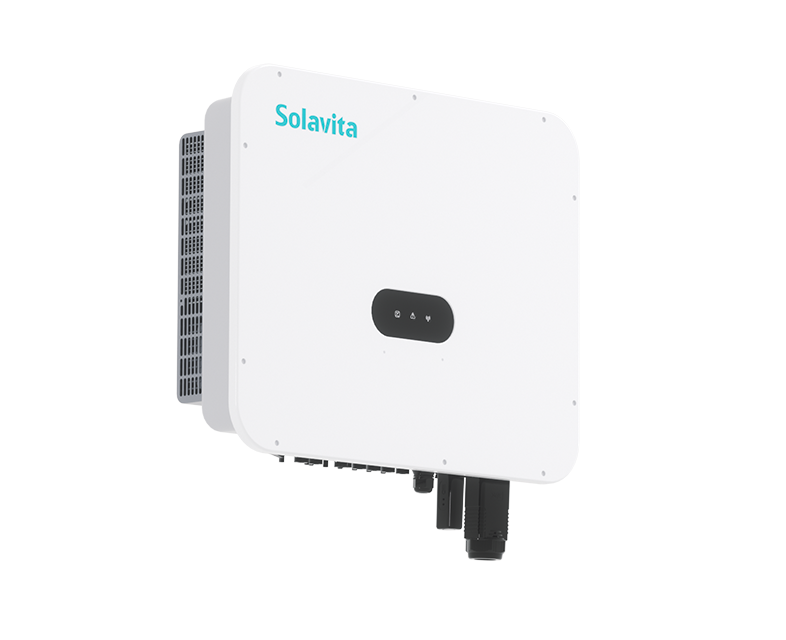

Solavita on-grid inverter with dual cooling fans on the side, designed for efficient energy management in residential and commercial applications, showcasing robust three-phase functionality

Effortless Swipe, Exceptional Performance

Developed with Top-Tier Technology and Rigorous Testing, What You See Is What You Get

Solavita on-grid inverter 40-60kw installed on an exterior wall next to a sleek energy storage unit, set in a modern residential environment with natural greenery, representing a complete solar energy solution for sustainable living

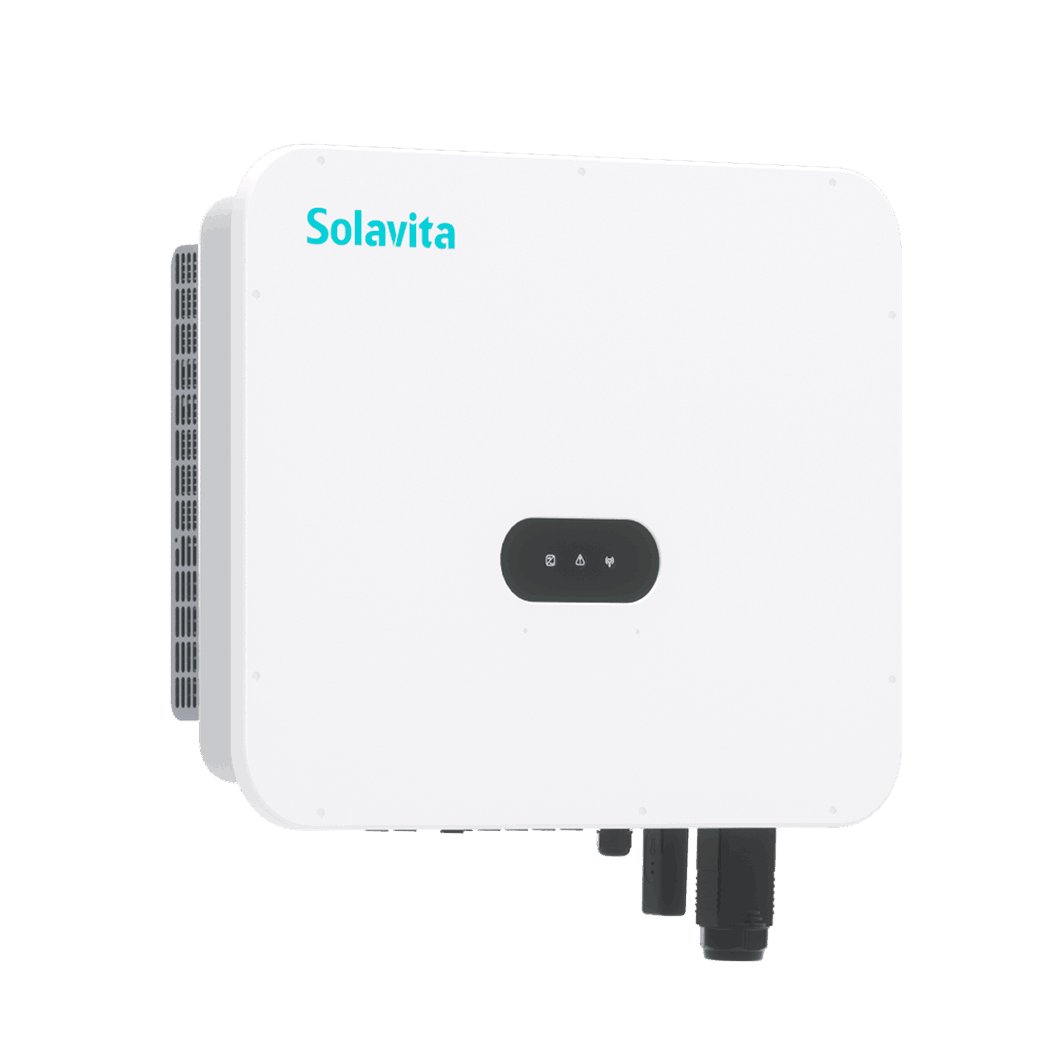

  • A white Solavita on-grid three phase 40-60kW inverter with multiple black connectors at the bottom and a small display panel on the front. The Solavita logo appears in blue in the upper left corner, highlighting its streamlined design and efficient functionality.
  • A white Solavita on-grid three phase 40-60kW inverter with multiple black connectors at the bottom and a small display panel on the front. The Solavita logo appears in blue in the upper left corner, highlighting its streamlined design and efficient functionality.
  • A white Solavita on-grid three phase 40-60kW inverter with multiple black connectors at the bottom and a small display panel on the front. The Solavita logo appears in blue in the upper left corner, highlighting its streamlined design and efficient functionality.

Product Model

  • SW040KTL-T2
  • SW050KTL-T2
  • SW060KTL-T2
    • Model
    • SW040KTL-T2
      • DC Input
      • Max. Input Voltage [V]
        1100
      • MPPT Voltage Range [V]
        200-1000
      • Rated Input Voltage [V]
        600
      • Start-up Voltage [V]
        180
      • No. of MPPT Trackers
        4
      • No. of PV Strings per MPPT
        2
      • Max. Input Current per MPPT [A]
        40
      • Max. Short Circuit Current Per MPPT [A]
        50
        • AC Output
      • Rated Output Power [W]
        40000
      • Max. Output Appearent Power [VA]
        44000
      • Max. Output Current [A]
        66.6
      • Rated Grid Voltage [V]
        3L/N/PE, 230/400,220/380
      • Rated Grid Frequency [Hz]
        50/60
      • Power Factor [cosΦ]
        1 (+/-0.8,adjustable)
        • Efficiency
      • Max. Efficiency
        98.80%
      • Euro Efficiency
        98.30%
        • Protection
      • DC Switch
        Integrated
      • Insulation Resistance Detection
        Integrated
      • Input Reverse Polarity Protection
        Integrated
      • Anti-island Protection
        Integrated
      • Residual Current Monitoring
        Integrated
      • AC Overcurrent Protection
        Integrated
      • AC Short-Circuit Protection
        Integrated
      • String Detection
        Integrated
      • DC Surge Protection
        Integrated (Type ll)
      • AC Surge Protection
        Integrated (Type Il)
      • DC Arc Protection
        Optional
      • IV Curve Scanning
        Optional
      • PID Recovery
        Optional
        • General Data
      • Dimensions (W*H*D)[mm]
        585*480*220
      • Weight [kg]
        37
      • Display
        LED Bluetooth+APP
      • Communication
        WiFi/RS485/LAN/4G(Optional)
      • Operating Temperature Range [C]
        -30~+60
      • Relative Humidity
        0~100%
      • Operation Altitude [m]
        ≤4000, (if>3000, derating）
      • Topology
        Transformerless
      • Cooling Concept
        Smart Fan-cooling
      • Protection Class
        IP66
    • Model
    • SW050KTL-T2
      • DC Input
      • Max. Input Voltage [V]
        1100
      • MPPT Voltage Range [V]
        200-1000
      • Rated Input Voltage [V]
        600
      • Start-up Voltage [V]
        180
      • No. of MPPT Trackers
        4
      • No. of PV Strings per MPPT
        2
      • Max. Input Current per MPPT [A]
        40
      • Max. Short Circuit Current Per MPPT [A]
        50
        • AC Output
      • Rated Output Power [W]
        50000
      • Max. Output Appearent Power [VA]
        55000
      • Max. Output Current [A]
        83.3
      • Rated Grid Voltage [V]
        3L/N/PE, 230/400,220/380
      • Rated Grid Frequency [Hz]
        50/60
      • Power Factor [cosΦ]
        1 (+/-0.8,adjustable)
        • Efficiency
      • Max. Efficiency
        98.80%
      • Euro Efficiency
        98.30%
        • Protection
      • DC Switch
        Integrated
      • Insulation Resistance Detection
        Integrated
      • Input Reverse Polarity Protection
        Integrated
      • Anti-island Protection
        Integrated
      • Residual Current Monitoring
        Integrated
      • AC Overcurrent Protection
        Integrated
      • AC Short-Circuit Protection
        Integrated
      • String Detection
        Integrated
      • DC Surge Protection
        Integrated (Type ll)
      • AC Surge Protection
        Integrated (Type Il)
      • DC Arc Protection
        Optional
      • IV Curve Scanning
        Optional
      • PID Recovery
        Optional
        • General Data
      • Dimensions (W*H*D)[mm]
        585*480*220
      • Weight [kg]
        37
      • Display
        LED Bluetooth+APP
      • Communication
        WiFi/RS485/LAN/4G(Optional)
      • Operating Temperature Range [C]
        -30~+60
      • Relative Humidity
        0~100%
      • Operation Altitude [m]
        ≤4000, (if>3000, derating）
      • Topology
        Transformerless
      • Cooling Concept
        Smart Fan-cooling
      • Protection Class
        IP66
    • Model
    • SW060KTL-T2
      • DC Input
      • Max. Input Voltage [V]
        1100
      • MPPT Voltage Range [V]
        200-1000
      • Rated Input Voltage [V]
        600
      • Start-up Voltage [V]
        180
      • No. of MPPT Trackers
        4
      • No. of PV Strings per MPPT
        2
      • Max. Input Current per MPPT [A]
        40
      • Max. Short Circuit Current Per MPPT [A]
        50
        • AC Output
      • Rated Output Power [W]
        60000
      • Max. Output Appearent Power [VA]
        66000
      • Max. Output Current [A]
        100.3
      • Rated Grid Voltage [V]
        3L/N/PE, 230/400,220/380
      • Rated Grid Frequency [Hz]
        50/60
      • Power Factor [cosΦ]
        1 (+/-0.8,adjustable)
        • Efficiency
      • Max. Efficiency
        98.80%
      • Euro Efficiency
        98.30%
        • Protection
      • DC Switch
        Integrated
      • Insulation Resistance Detection
        Integrated
      • Input Reverse Polarity Protection
        Integrated
      • Anti-island Protection
        Integrated
      • Residual Current Monitoring
        Integrated
      • AC Overcurrent Protection
        Integrated
      • AC Short-Circuit Protection
        Integrated
      • String Detection
        Integrated
      • DC Surge Protection
        Integrated (Type ll)
      • AC Surge Protection
        Integrated (Type Il)
      • DC Arc Protection
        Optional
      • IV Curve Scanning
        Optional
      • PID Recovery
        Optional
        • General Data
      • Dimensions (W*H*D)[mm]
        585*480*220
      • Weight [kg]
        37
      • Display
        LED Bluetooth+APP
      • Communication
        WiFi/RS485/LAN/4G(Optional)
      • Operating Temperature Range [C]
        -30~+60
      • Relative Humidity
        0~100%
      • Operation Altitude [m]
        ≤4000, (if>3000, derating）
      • Topology
        Transformerless
      • Cooling Concept
        Smart Fan-cooling
      • Protection Class
        IP66
