SWG 225KTL-T1

Three Phase On Grid Inverter (HV)

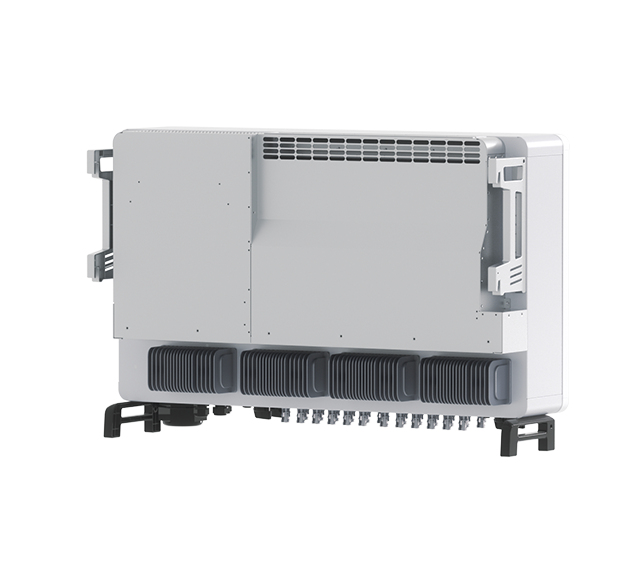

Rear view of Solavita on-grid inverter showcasing heat dissipation fins and multiple connection ports, optimized for commercial and industrial (C&I) applications. Ideal for efficient power management in three-phase solar inverter systems.

Safe and Reliability

Equipped with IP66 protection, SW225KTL-T1 Series endures harsh environements for stable performance throughout its life cycle. Both the DC side and AC side are equipped with Type II surge protection to protect the inverter from lightning, providing upgraded safety and reliability for the PV system.

Optional AFCI & Smart PID recovery function
IP66
Type Ⅱ SPD and both DC and AC

Higher power generation,Higher Return

The inverter offers higher power generation efficiency, supports 1.5 times DC overloading,low start-up voltage at 550V, perfectly compatible with mainstream 600W+ PV modules. Additionally, it can operate at 1.1 times its rated capacity for extended periods without derating, ensuring efficient and stable system performance，get the higher return.

Low start-up voltage at 550V
110% AC overloading
150% DC oversizing
12 MPPTs
Support Night SVG

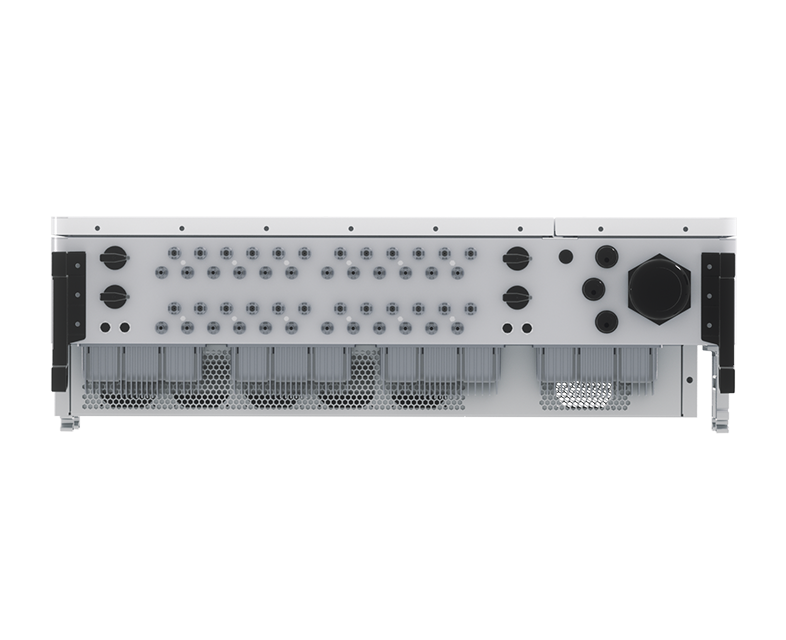

Bottom view of Solavita on-grid 125kw inverter showcasing PV input and communication ports, designed for efficient integration in solar energy systems, ideal for commercial and industrial installations

Flexible Control & Monitoring

The inverter can monitor the power of PV strings in different directions flexibly. At the same time, multiple communication methods can automatically upload operating parameters to the cloud and support remote software upgrade. Combined with Mysolavita，users can achieve 24h-data smart monitoring to protect the Commerical PV system safety.

Remote firmware upgrade
24h-data smart monitoring

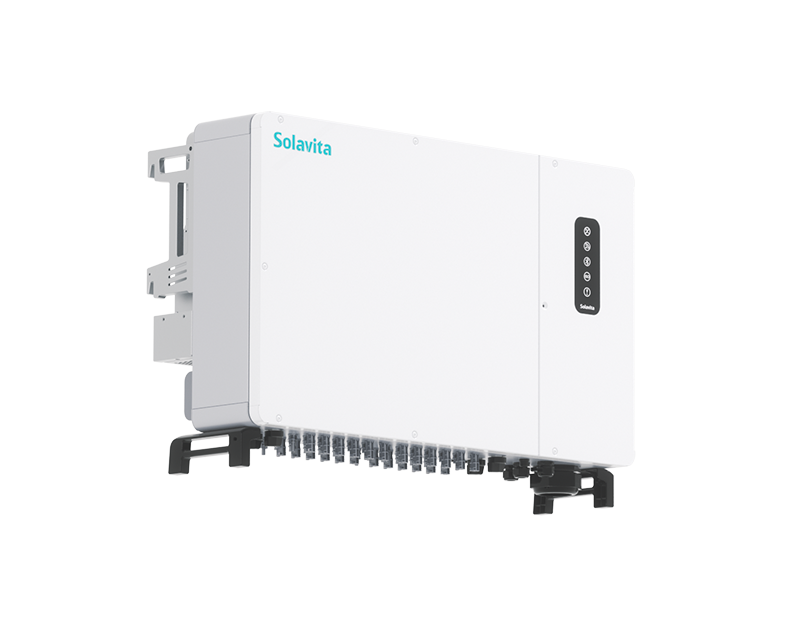

Solavita three-phase on-grid inverter designed for commercial and industrial (C&I) applications, featuring a sleek front panel with multiple connection points for optimized solar energy management.

Core Parameters

Max.Input Voltage

1500V
MPPT Voltage Range

500~1500V
start-up Voltage

550V
Max. Efficiency

99.03%
Euro Efficiency

98.55%
Communication

RS485/PLC
DC/AC Surge Protection

Integrated ( Type Ⅱ）
No.of MPPT Trackers

12
No.of PV Strings per MPPT

2
Max. of Input Current per MPPT [A]

30

Solavita on-grid inverter with dual cooling fans on the side, designed for efficient energy management in residential and commercial applications, showcasing robust three-phase functionality

Effortless Swipe, Exceptional Performance

Developed with Top-Tier Technology and Rigorous Testing, What You See Is What You Get

Solavita on-grid inverter 225kw installed on an exterior wall next to a sleek energy storage unit, set in a modern residential environment with natural greenery, representing a complete solar energy solution for sustainable living

Product Model

SW225KTL-T1

- Model
- SW225KTL-T1
- - Max. Input Voltage [V]

    1500
  - MPPT Voltage Range [V]

    500~1500
  - Rated Voltage [V]

    1160
  - Start-up Voltage [V]

    550
  - No. of MPPT Trackers

    12
  - No. of PV Strings per MPPT

    2
  - Max. Input Current per MPPT [A]

    30
  - Max. Short Circuit Current per MPPT [A]

    50
  - Rated Output Power [W]

    225000
  - Max. Output Appearent Power [VA]

    247500
  - Max. Output Current [A]

    180.5
  - Rated Grid Voltage [V]

    3/PE, 800
  - Rated Grid Frequency [Hz]

    50/60
  - Power Factor [cosΦ]

    1(+/-0.8,adjustable)
  - Max. Efficiency

    99.03%
  - Euro Efficiency

    98.55%
  - DC Switch

    Integrated
  - Insulation Resistance Monitoring

    Integrated
  - Input Reverse Polarity Protection
  - Anti-island Protection

    Integrated
  - Residual Current Monitoring

    Integrated
  - String Fault Detection

    Integrated
  - DC Surge Protection

    Optional (Type ll)
  - AC Surge Protection

    Optional (Type ll)
  - PID Recovery

    Optional
  - DC Arc Protection

    Optional
  - Night SVG

    Optional
  - Dimensions (W*H*D)[mm]

    1005*700*336
  - Weight [kg]

    110
  - Display

    LED & Bluetooth+APP
  - Communication

    RS485/PLC
  - Operating Temperature Range [°C]

    -30~+60
  - Relative Humidity

    0~100%
  - Operation Altitude [m]

    ≤4000(if>2000,Power Reduction Needed)
  - Topology

    Transformerless
  - Cooling Concept

    Smart Fan-cooling
  - Ingress Protection

    IP66
